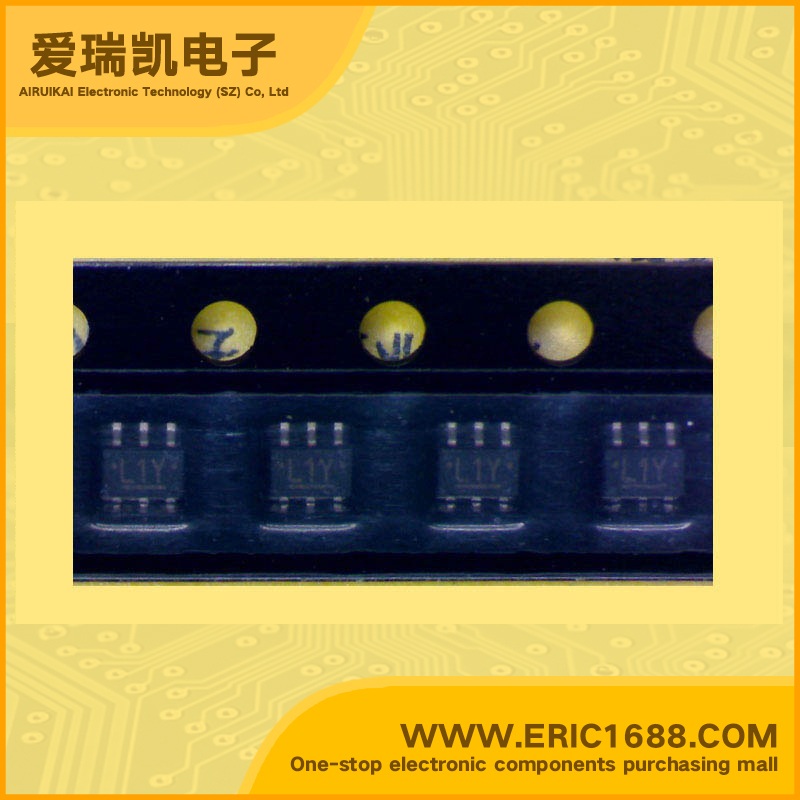

HN2C01FU-Y NPN+NPN Complex Bipolar Transistor 60V 150mA HEF=120~400 SOT-363/US6 marking L1Y switch and digital circuit application
|
V(BR) CBO Collector-Base Voltage |
60V |
|
V(BR) CEO Collector-Emitter Voltage |
50V |
| Collector Current(IC) | 200MA |
| Transtion Frequency(fT) | 80MHZ |
| DC Current Gain(hFE) | 120~240 |
|
VCE (sat) Collector-Emitter Saturation Voltage |
0.25V |
| Power Dissipation （Pd） | 0.25W |
| Description & Applications | Audio Frequency General Purpose Amplifier Applications
* Small package (dual type)
* High voltage and high current : VCEO = 50V, IC = 150mA (max)
* High hFE : hFE = 120~400
* Excellent hFE linearity : hFE (IC = 0.1mA) / (IC = 2mA)
= 0.95 (typ.)
|
