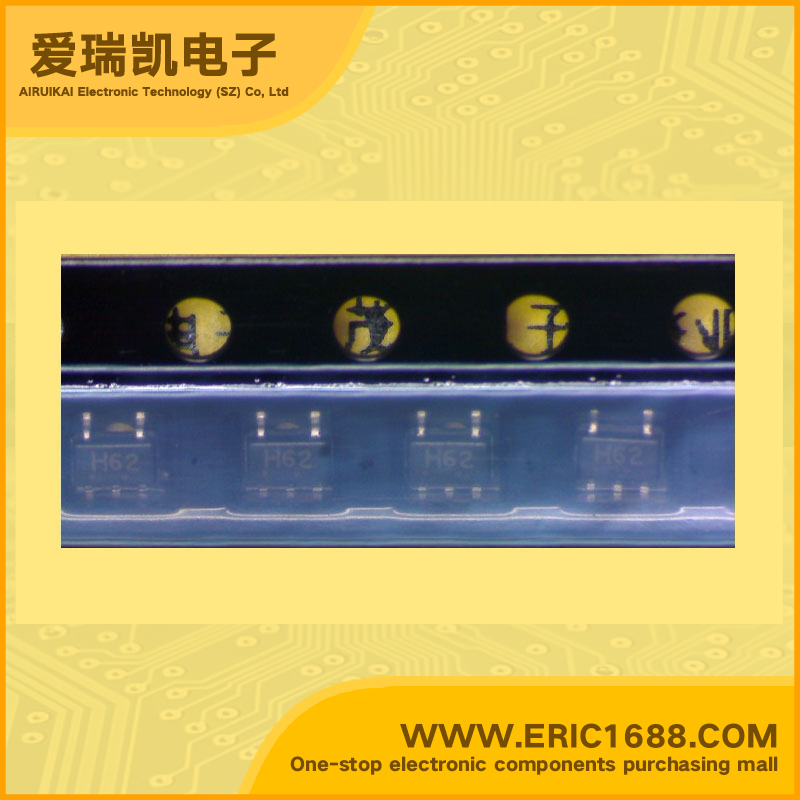

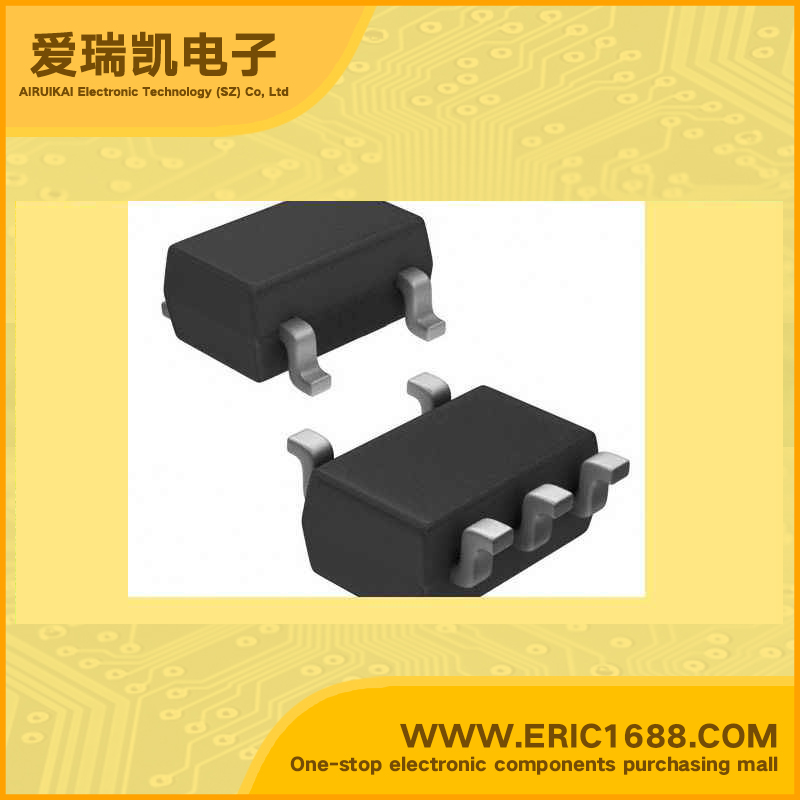

Integrated Circuit（IC） inverter MC74HC1GU04DFT2G SOT-353/SC-88A/SC70-5 marking H62
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.3V~1.8V |
| 高逻辑电平 Logic Level - High | 1.7V~4.2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7ns @ 4.5V，50pF |
| Description & Applications | Single Unbuffered Inverter；Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) @ TA = 25°C High Noise Immunity Balanced Propagation Delays (tpLH = tpHL) Symmetrical Output Impedance (IOH = IOL = 2 mA) Chip Complexity: FET = 105 Pb−Free package are available |
| 描述与应用 | 单非缓冲逆变;特性 高速：TPD =7纳秒（典型值）@ VCC = 5 V 低功耗：ICC=1微安（最大值）@ TA= 25°C 高抗噪声能力 平衡传输延迟（TPLH =TPHL） 对称的输出阻抗（IOH= IOL= 2毫安） 芯片的复杂性：FET=105 无铅封装可用 |
