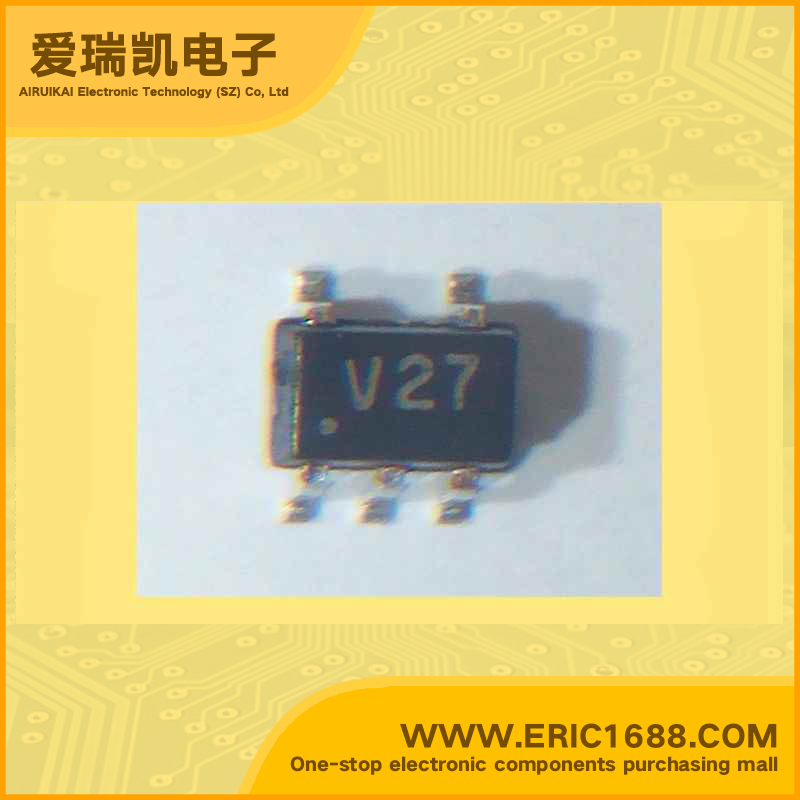

Integrated Circuit（IC） AND gate MC74VHC1G08DFT2G SOT-353/SC-88A/SC70-5 marking V2
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.9ns @ 4.5V~5.5V，50pF |
| Description & Applications | Single 2-input AND gate；Features High Speed: tPD = 3.5ns (Typ) @VCC = 5V Low Power Dissipation: ICC = 2µA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300mA ESD Performance: HBM > 2000V; MM > 200V, CDM > 1500V |
| 描述与应用 | 单路双输入与门；特性 高速：TPD =3.5ns的（典型值）@ VCC= 5V 低功耗：ICC=2μA（最大值）@ TA= 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300mA ESD性能：HBM> 2000V; MM> 200V，CDM>1500V |
