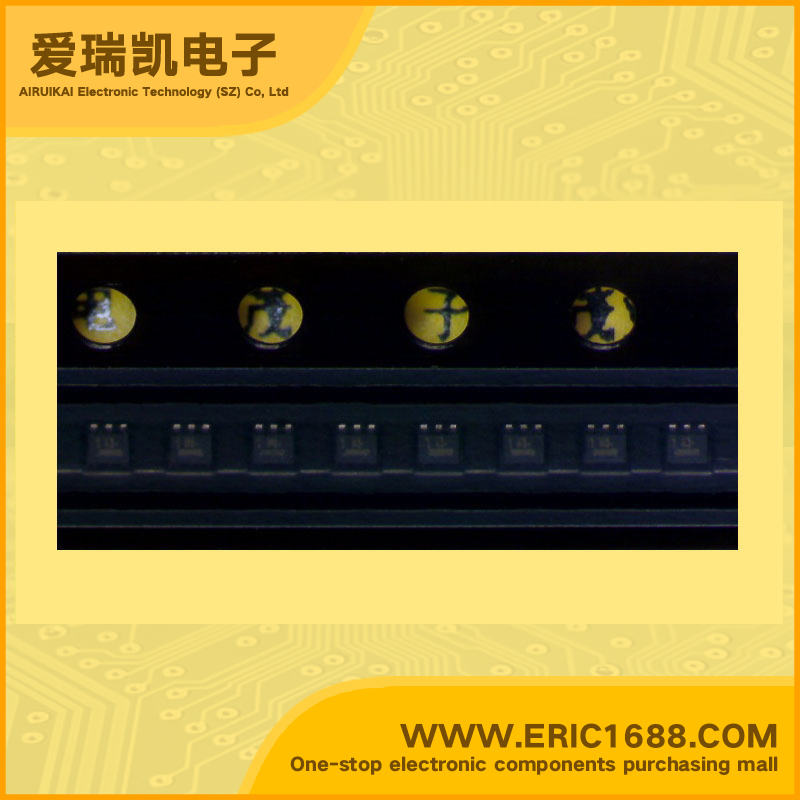

MT6L71FS NPN+NPN Complex Bipolar Transistor 10V/13V 25mA/40mA 12GHZ/6GHZ 70~140/100~160 SOT-563/ES6 marking 14 switch and digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) Q1/Q2 | 10V/13V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) Q1/Q2 | 5V/6V |
|
集电极连续输出电流IC Collector Current(IC) Q1/Q2 |
25mA/40mA |
| 直流电流增益hFE DC Current Gain(hFE) | 70~140/100~160 |
| 截止频率fT Transtion Frequency(fT) | 12000MHz/6000MHz |
| 耗散功率Pc Power Dissipation | 100mW/90mW |
| Description & Applications | Features • TOSHIBA Transistor Silicon NPN Epitaxial Planar Type • Superior noise characteristics • Superior performance in buffer and oscillator applications • Two devices are incorporated in a fine-pitch, small-mold package (6 pins): fS6. • VHF~UHF Band Low-Noise Amplifier Applications |
