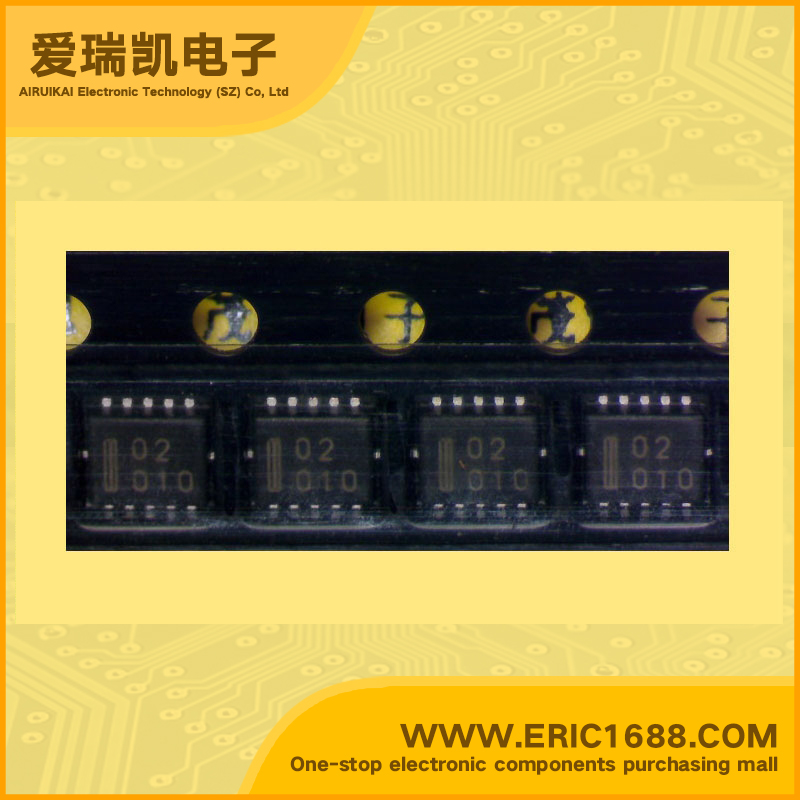

RF amplifier NJG1704KC1-TE1 FLP10-C1 marking O2
| 频率 Frequency | 820MHz |
| P1dB | |
| 增益 Gain | 16.5dB/12.5dB |
| 噪声系数 Noise Figure | 1.4dB/5.0dB |
| RF 类型 RF Type | MMIC |
| 电源电压 Voltage - Supply | 2.7V |
| 电源电流 Current - Supply | 3.1mA/5.0mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES •800MHz BAND FRONT-END GaAs MMIC •Low Voltage Operation +2.7V typ. •Low Current Consumption LNA 3.1mA typ. Mixer 6.1mA typ. (with local amplifier operation current) •Ultra Small & Ultra Thin package FLP10-C1 (Package size: 3.0x2.8x0.75mm) ·LNA •High Small Signal Gain 16.5dB typ. @ fRF=820MHz •Low Noise Figure 1.4dB typ. @ fRF=820MHz •High Input IP3 -4.0dBm typ. @ fRF=820.0+820.1MHz ·Mixer •High Conversion Gain 12.5dB typ. @ fRF=820MHz, fLO=690MHz, PLO=-10dBm •Low Nose Figure 5.0dB typ. @ fRF=820MHz, fLO=690MHz, PLO=-10dBm •High Input IP3 +1.0dBm typ. @fRF=820.0+820.1MHz, fLO=690MHz, PLO=-10dBm |
| 描述与应用 | 特点 •800MHz的带内前端的GaAs MMIC •低工作电压+2.7 V（典型值）。 •低电流消耗LNA3.1毫安典型。 MIXER6.1毫安典型。 （本地放大器的工作电流） •超小型和超薄封装FLP10-C1（包装尺寸：3.0x2.8x0.75mm） ·LNA •小信号增益高16.5分贝典型。 @ FRF =820MHz工作 •低噪声系数1.4分贝典型。 @ FRF =820MHz工作 •高输入IP3-4.0dBm的典型。 @ FRF=820.0820.1兆赫 ·MIXER •高转换增益12.5分贝典型。 @ FRF =820MHz工作，FLO=690MHz，PLO=-10dBm时 •低噪声系数5.0分贝典型。 @ FRF =820MHz工作，FLO=690MHz，PLO=-10dBm时 •高输入IP3+1.0 dBm（典型值）。 @ FRF=820.0820.1兆赫，FLO=690MHz，PLO=-10dBm时 |
