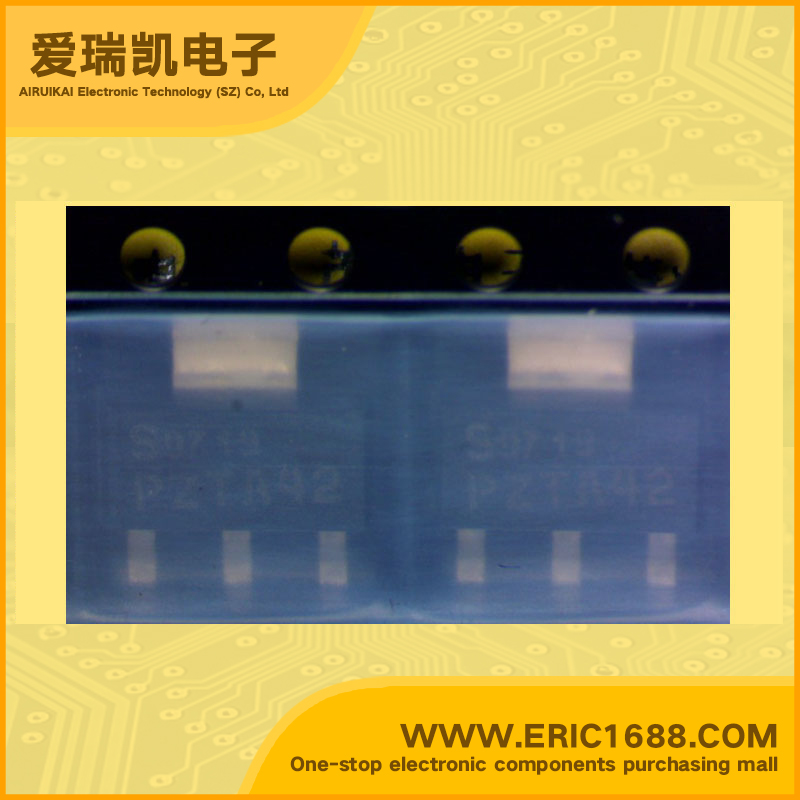

PZTA42 NPN Transistors(BJT) 300V 500mA/0.5A 50MHz 40 500mV/0.5V SOT-223/SC-73 marking ZTA42 high voltage amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 300V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 300V |
| 集电极连续输出电流IC Collector Current(IC) | 500mA/0.5A |
| 截止频率fT Transtion Frequency(fT) | 70MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 40 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 1.5W |
| Description & Applications | NPN Silicon High-Voltage Transistors • High breakdown voltage • Low collector-emitter saturation voltage • Complementary type: PZTA92 (PNP) • Pb-free (RoHS compliant) package1) • Qualified according AEC Q101 |
| 描述与应用 | NPN硅高压晶体管 •高击穿电压 •低集电极 - 发射极饱和电压 •互补类型：PZTA92（PNP） •无铅（符合RoHS）包1） •符合AEC Q101 |
