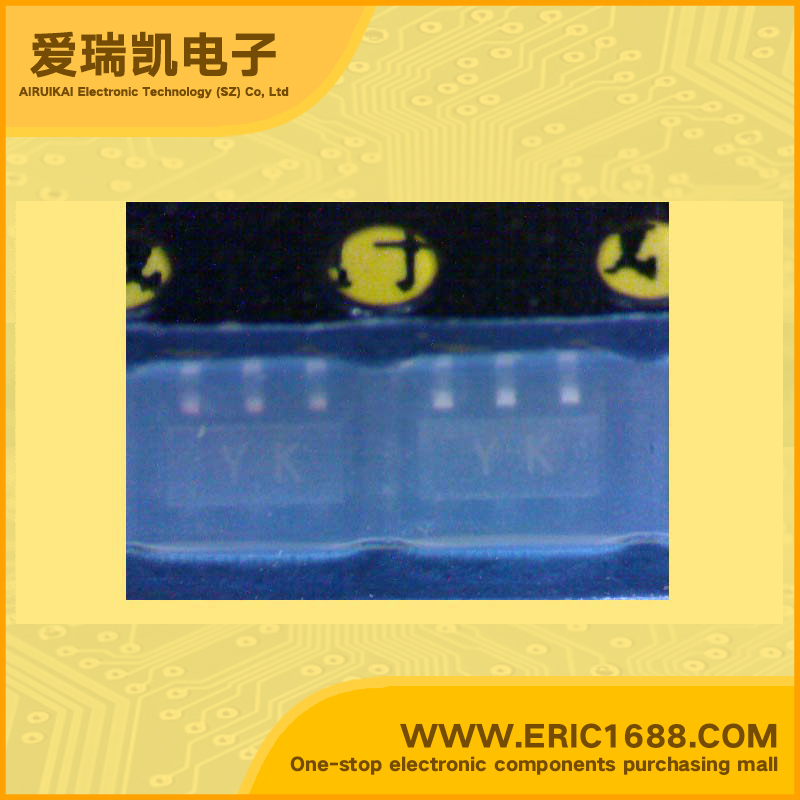

RN2610 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.3W HEF=120~400 R1=4.7KΩ SOT-163/SM6/SOT23-6 marking YK switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage |
-50V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -0.1A |
| Input Resistance(R1) | 4.7KΩ |
| Base-Emitter Resistance(R2) | |
| Base-Emitter Input Resistance Ratio (R1/R2) | |
| DC Current Gain(hFE) | 120~400 |
| Transtion Frequency(fT) | 200MHZ |
| Power Dissipation （Pd） | 300MW/0.3W |
| Description & Applications | Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications
* Including two devices in SM6 (super mini type with 6 leads)
* With built-in bias resistors
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process
|
