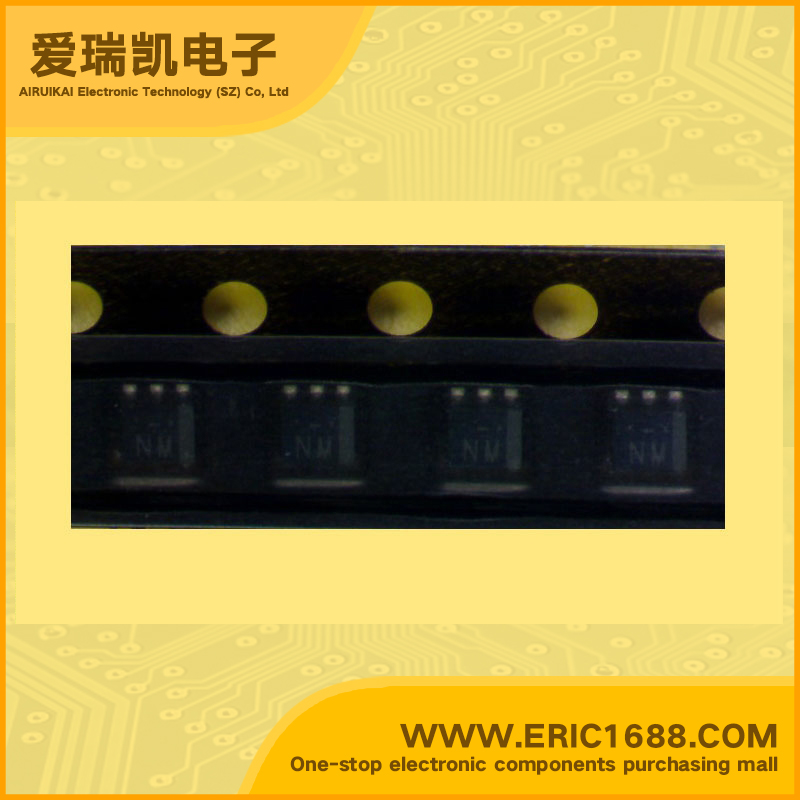

RTL030P02 MOSFET P-Channel -20V 3A 0.050ohm SOT-363 marking WN low on-resistance ultra high-speed switch low drive voltage

Model：RTL030P02
Mark / screen / code / typing：WN
Manufacturer：
Date Code：05 NOPB 05+18.4KNOPB
Package：SOT-363/SC70-6/TUMT6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	12V
最大漏极电流Id Drain Current	-3A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.050Ω @-3A,-4.5V
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.7--2.0V
耗散功率Pd Power Dissipation	1W
Description & Applications	Features Low on-resistance. (570mΩ at 2.5V) High power package. High speed switching. Low voltage drive. (2.5V)
描述与应用	低导通电阻。（570mΩ在2.5V）高功率封装。高速开关。低电压驱动
