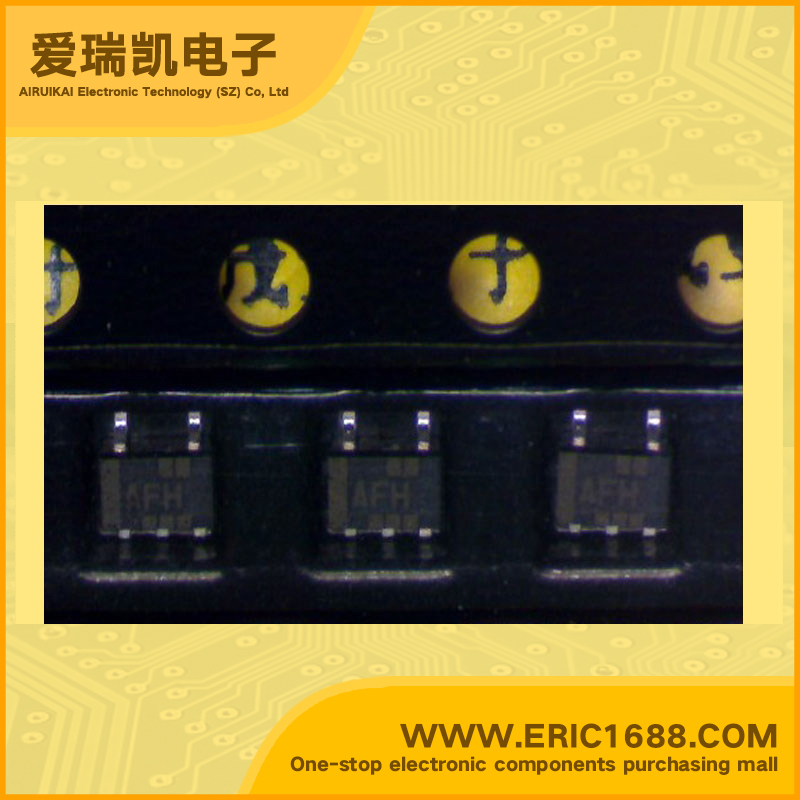

Integrated Circuit(IC) Inverting Schmitt trigger SN74AHC1G14HDCKR SOT-353/SC70-5/SC-88A marking AFH

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
2v~5.5v
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.1v~0.44v
高逻辑电平
Logic Level - High
1.9V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3.4nS @ 5V, 50pF
Description & ApplicationsSINGLE SCHMITT-TRIGGER INVERTER GATE ;Operating Range of 2 V to 5.5 V Switching speed typ3.1ns(@Vcc=3v,CL=15pf) All inputs VLH(MAX)=5.5v(@Vcc=0 to 5.5v)
描述与应用单一的施密特触发器逆变器门;2 V至5.5 V的工作范围 的开关速度typ3.1ns(@ VCC=3V,CL=15PF) 所有输入VLH(MAX)= 5.5V(VCC =0至5.5V)
