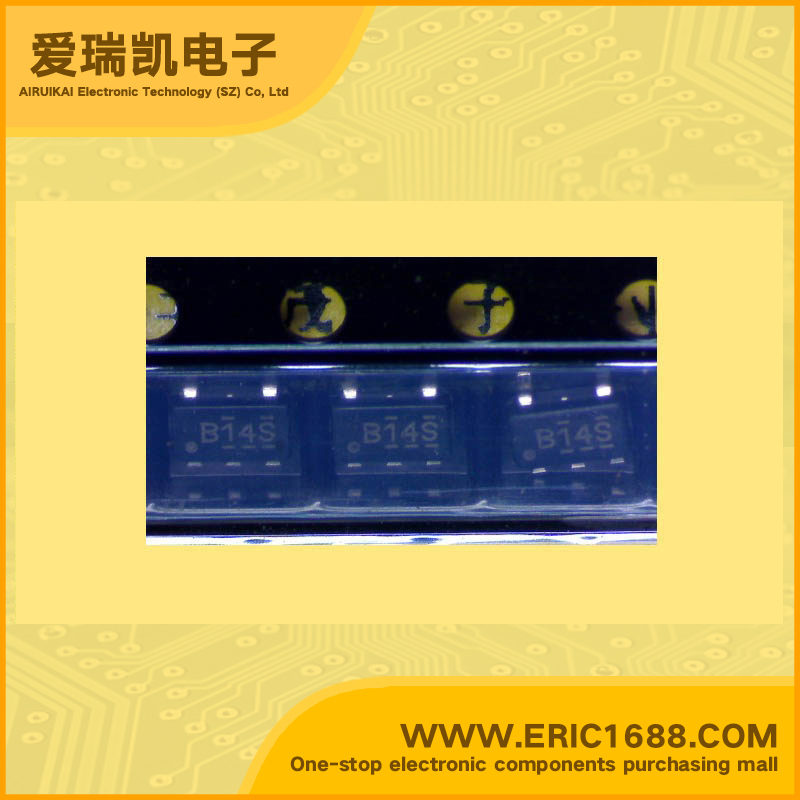

Integrated Circuit（IC） Inverting Schmitt trigger SN74AHCT1G14DBVR SOT-153/SOT23-5/SC-74A marking B14
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | |
| 高逻辑电平 Logic Level - High | |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.5ns @ 0.5V，50pF |
| Description & Applications | SINGLE SCHMITT-TRIGGER INVERTER GATE ；Operating Range of 4.5 V to 5.5 V Max tpd of 7.1 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 |
| 描述与应用 | 施密特触发器逆变器器门;工作电压范围为4.5 V至5.5 V 最大5 V时为7.1 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V？ 输入是TTL电压兼容 闭锁性能超过250 mA每 JESD17 |
