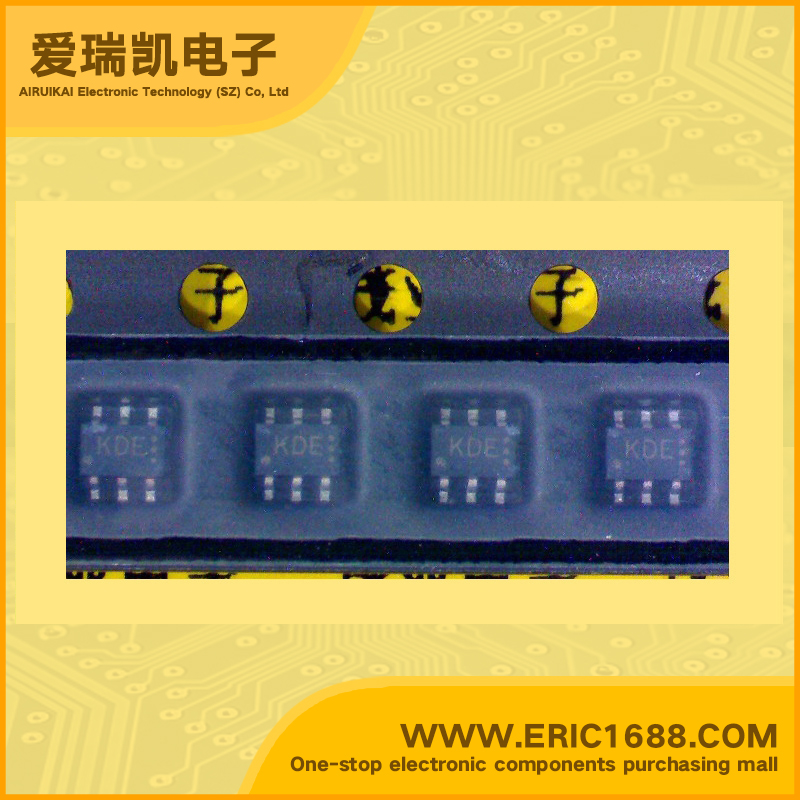

SSM6K07FU MOSFET N-Channel 30V 1.5A SOT-363/SC70-6/TSSOP6/SC-88/US6 marking KDE fast switch/low on-resistance/Low Gate Threshold Voltage
| 最大源漏极电压Vds Drain-Source Voltage | 30V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 20V |
| 最大漏极电流Id Drain Current | 1.5A |
| 源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance | 0.13Ω/Ohm @750mA,10V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | 1.1-1.8V |
| 耗散功率Pd Power Dissipation | 300mW/0.3W |
| Description & Applications | DC-DC Converters High Speed Switching Applications Small package Low on resistance : Ron = 130 mΩ max (@VGS = 10 V) Ron = 220 mΩ max (@VGS = 4 V) Low input capacitance : Ciss = 102 pF typ. Crss = 22 pF typ. |
| 描述与应用 | 高速开关应用 小型封装 低导通电阻RON =130mΩ最大（@ VGS= 10V） RON =220mΩ最大（@ VGS=4 V） 低输入电容：西斯=102 pF（典型值）。 反向传输电容=22 pF（典型值） |
