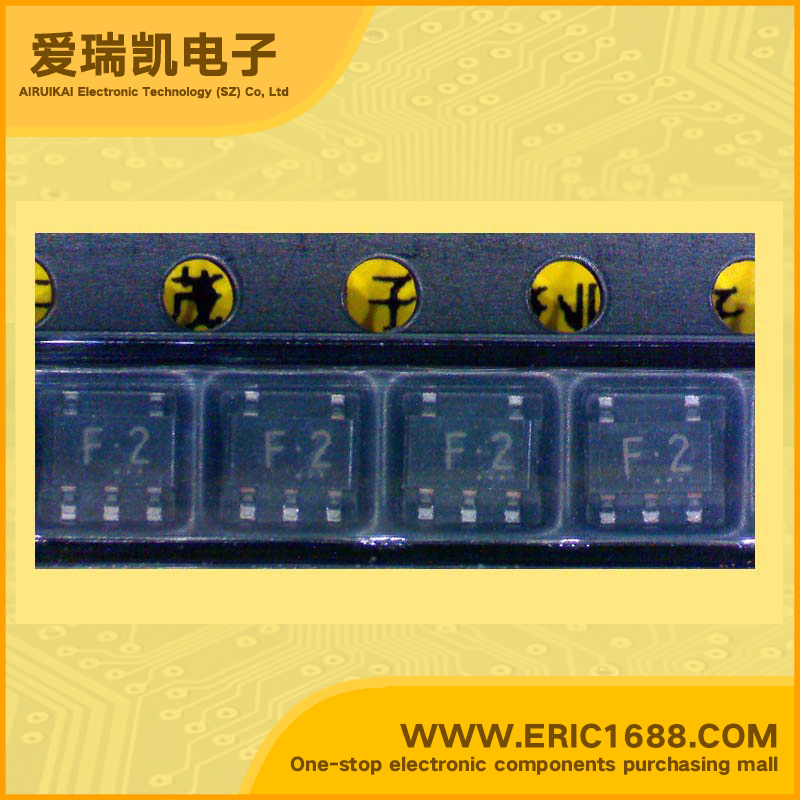

Integrated Circuit(IC) AND gate TC7ST08F SOT-153/SMV marking F2

Price (excluding freight):
Batches(PCS):
$0.126
≤99
$0.113
≤499
$0.094
≤999
$0.082
≤2999
$0.076
FCL

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
4.5V~5.5V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-20mA,20mA
低逻辑电平
Logic Level - Low
0.8V
高逻辑电平
Logic Level - High
2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
12ns @ 5.5V,50pF
Description & Applications2-Input AND Gate ;High speed - tpd = 15ns (Typ.) at VCC = 5V • Low Power Dissipation - ICC = 1µA (Max.) at Ta = 25°C • Compatible with TTL outputs - VIL= 0.8V (Max.), VIH = 2.0V (Min.) • Output Drive Capability - 5 LSTTL Loads • Symmetrical Output Impedance - |IOH| = IOL = 2mA
描述与应用2输入与门;高速 - TPD= VCC = 5V时为15ns(典型值) •低功耗 - ICC=1μA(最大值)在Ta = 25°C •兼容TTL输出 - VIL=0.8V(最大),VIH=2.0V(最小) •输出驱动能力 - 5个输入通道负载 •对称的输出阻抗 - | IOH= IOL=2毫安
