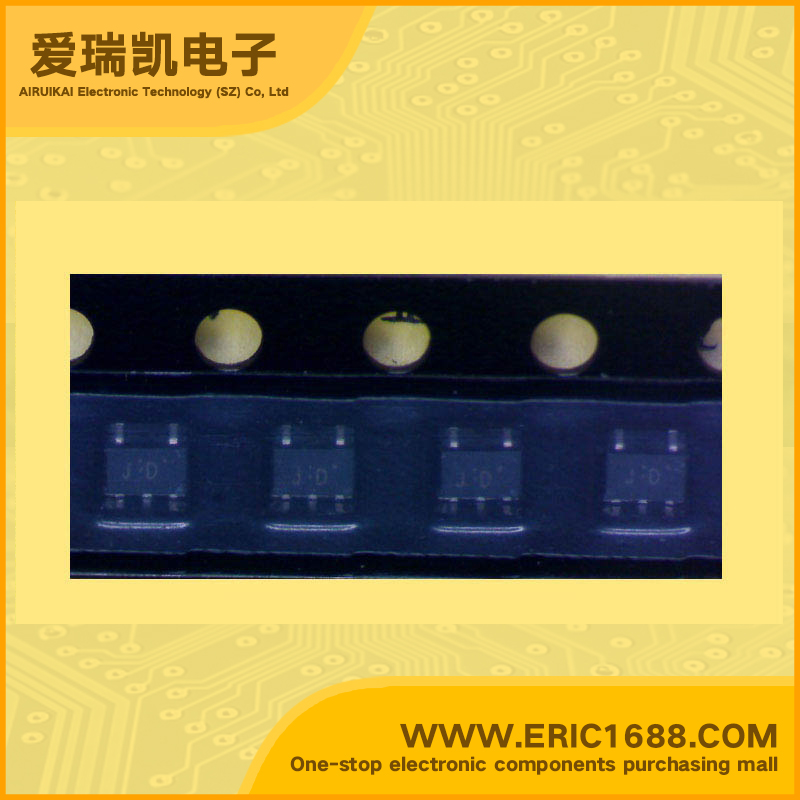

Integrated Circuit（IC） XOR gate TC7SZ86FU SOT-353/USV marking J8
| 逻辑类型 Logic Type | 异或门 XOR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.8v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -24mA,24mA |
| 低逻辑电平 Logic Level - Low | 0.12v~0.25v |
| 高逻辑电平 Logic Level - High | 0.75v~0.88v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.9ns @ 5V，50pF |
| Description & Applications | 2-Input EXCLUSIVE OR Gate ；High output current : ±24 mA (min) at VCC = 3 V • Super high speed operation : tpd = 2.9 ns (typ.) at VCC = 5 V, CL = 50 pF • Operating voltage range : VCC = 1.8 to 5.5 V • 5.5-V tolerant inputs. • 5.5-V power down protection output. • Matches the performance of TC74LCX series when operated at 3.3 V VCC. |
| 描述与应用 | 2输入异或门;高输出电流：±24 mA（分钟）在VCC=3 V •超高速运转：TPD =2.9 ns（典型值） 在VCC= 5 V，CL=50 pF的 •工作电压范围：VCC = 1.8至5.5 V •5.5-V宽容投入。 •5.5-V断电保护输出。 •操作时的性能相匹配的TC74LCX系列 3.3 V虚拟通道连接。 |
