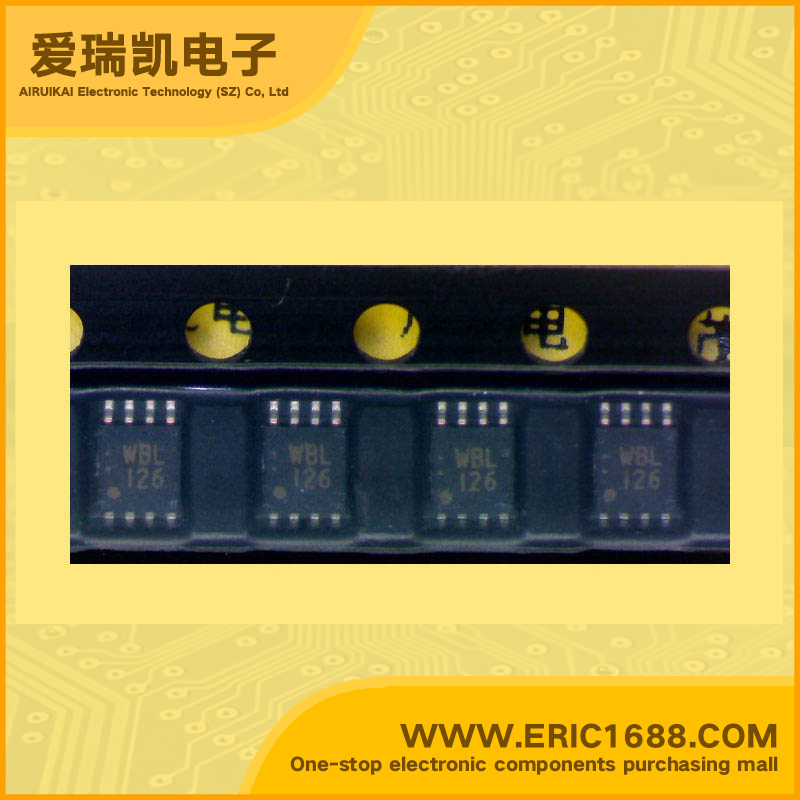

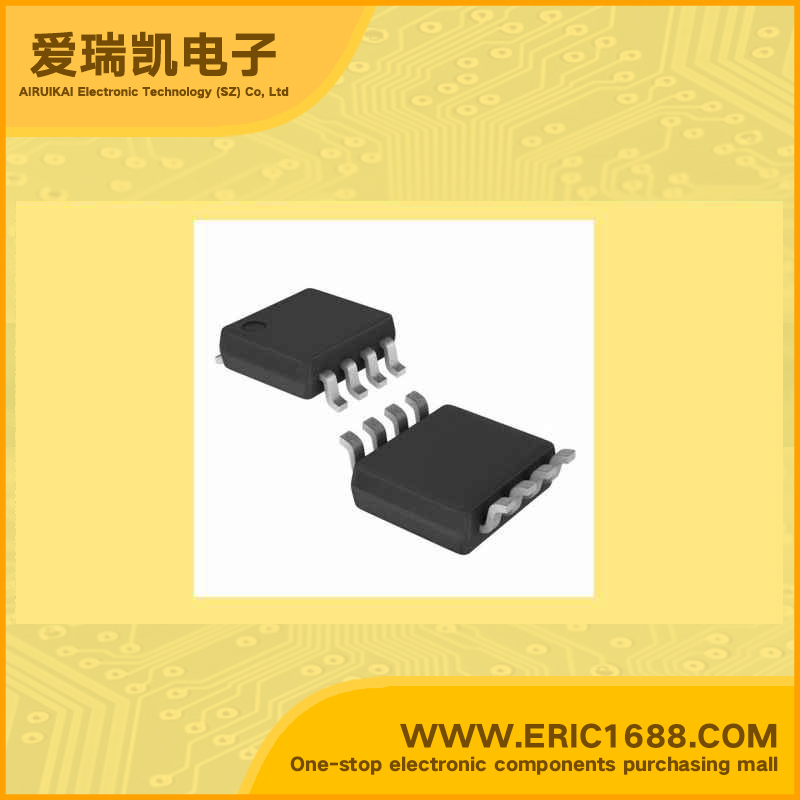

TC7WBL126FK Signal Switch, Multiplexer, Decoder VFSOP8/US8 marking
| 逻辑类型 Logic Type | 总线开关 Bus Switch |
| 电路数 Number of Circuits | |
| 输入数 Number of Inputs | |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 2 V ~ 3.6 V |
| 低逻辑电平 Logic Level - Low | The TC7WBL126FK provides two bits of low-voltage, high-speed bus switching. The low ON-resistance of the switch allows connections to be made with minimal propagation delay and while maintaining CMOS low power dissipation. The device comprises dual 2-bit switches with separate bus enable ( OE ) signals. When OE is low, the switch is on and port A is connected to port B. When OE is high, the switch is off and a high-impedance state exists between the two ports. All inputs are equipped with protection circuits to guard against static discharge. Operating voltage range: VCC = 2 to 3.6 V High speed: tpd = 0.31 ns (max) @ 3 V Ultra-low ON-resistance: RON = 5 Ω (typ.) @ 3 V ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V Power-down protection provided on inputs ( OE input only) Package: US8 |
| 高逻辑电平 Logic Level - High | TC7WBL126FK提供2位低电压，高速总线开关。低导通电阻的开关允许以最小的传播延迟连接，同时保持CMOS的低功耗。该器件包括2位开关，双独立总线使能（OE）信号。当OE低，开关打开，端口A连接到端口B。当OE高，开关处于关闭状态，高阻抗状态之间存在着两个端口。所有输入都配有保护电路，以防止静电放电。 工作电压范围：VCC=3.6 V 高速：TPD =0.31NS（最大值）@3 V 超低导通电阻：RON= 5Ω（典型值）@3 V ESD性能：机器型号≥±200 V 人体模式≥±2000 V 掉电保护提供输入（OE输入） 包装：US8 |
