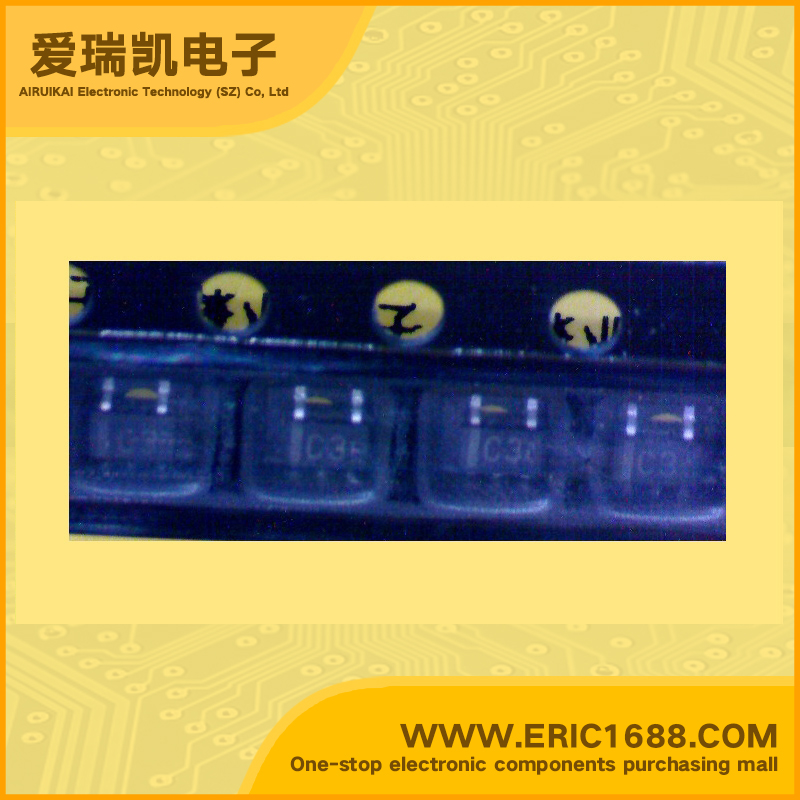

UMC3 NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 50mA/-50mA 150mW/0.15W SOT-353/UMT5/SC-88A/SC70-5 marking C3 switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V/-50V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA/-50mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Features • Power management (dual digital transistors) • Both the DTA114E chip and DTC114E chip in a UMT or SMTpackage. • Ideal for power switch circuits. • Mounting cost and area can be cut in half. |
| 描述与应用 | 特点 •电源管理（双数字晶体管） •两个DTA114E芯片和DTC114E芯片在一个UMT或SMTpackage的。 •电源开关电路的理想选择。 •安装成本和面积可减少一半 |
