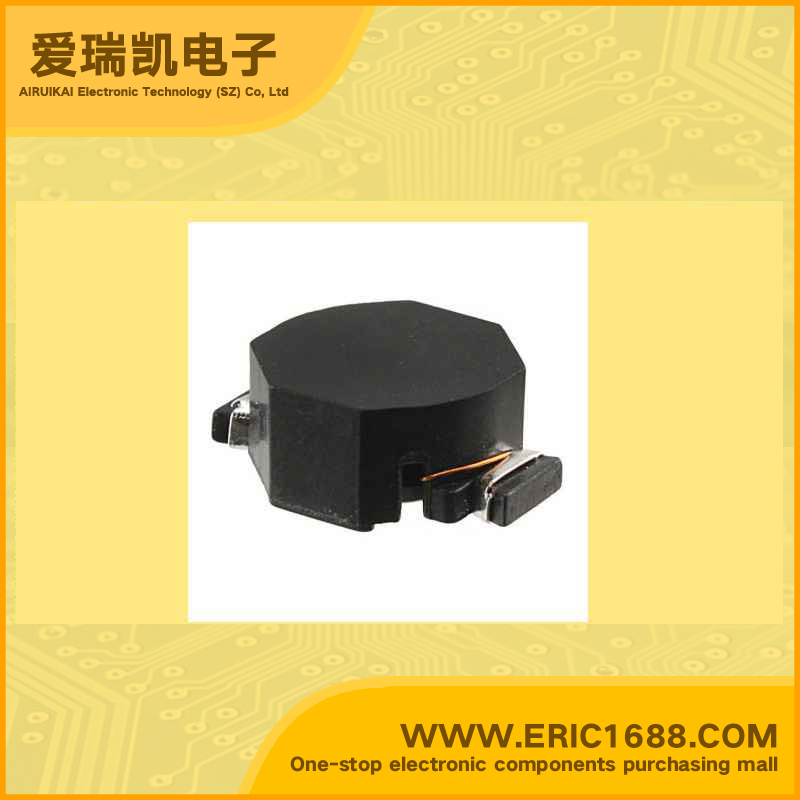

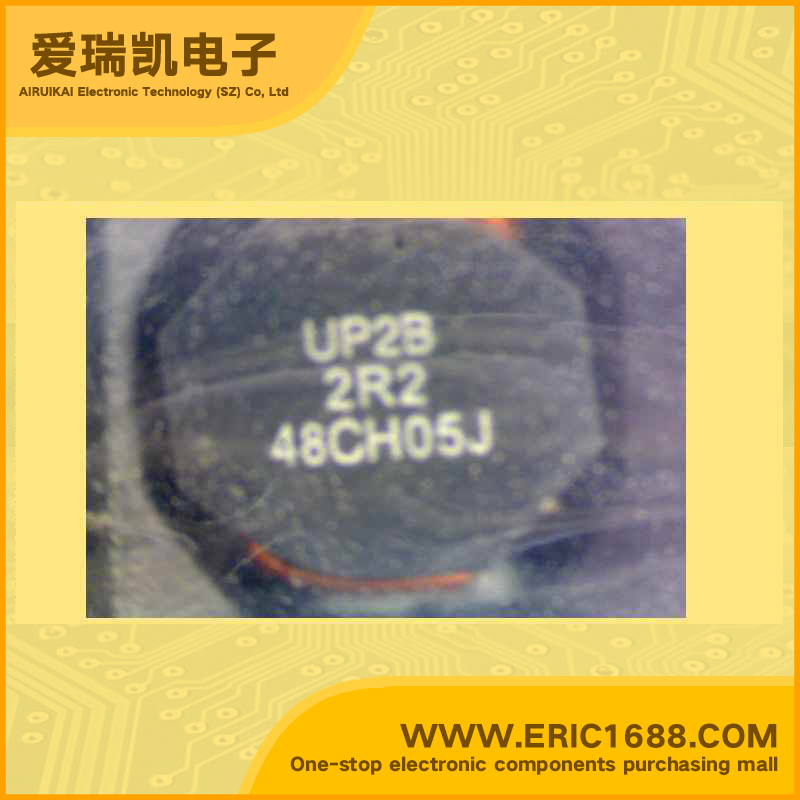

power conductor UP2B-2R2 2.2uH 10M-2R2
| Q值 Q Value | |
| 电感值 Inductance | 2.2uH |
| 误差 Tolerance | ±20% |
| 额定电流 Current Rating | 7200mA |
| 饱和电流 Current - Saturation | 6100mA |
| DC电阻DCR DC Resistance (DCR) | 0.0107Ω/Ohm |
| Description & Applications | Description • Miniature surface mount design • Inductance range from 0.470uH to 1000uH • Current range from 19.2 to .47 Amps • Maximum power density • Ideal for applications requiring low inductance and high current in a miniature package • Modified standard products are available • Protective case eliminates core breakage • Meets UL 94V-0 flammability standard • Ferrite core material Applications • DC-DC converters on board level and industrial products Environmental Data • Storage temperature range: -40°C to +125°C • Operating ambient temperature range: -40°C to +85°C (range is application specific) • Solder reflow temperature: +260°C max. for 10 seconds max. |
| 描述与应用 | 描述 •微型表面贴装设计 •电感范围从0.470uH1000UH •电流范围从19.2到0.47安培 •最大功率密度 •非常适合需要低电感和高 目前在一个微型封装 •修改标准产品 •保护的情况下消除了核心破损 •符合UL94V-0阻燃标准 •铁氧体磁芯材料 应用 •DC-DC转换器的板级和工业 产品 环境数据 •存储温度范围：-40°C至+125°C •工作环境温度范围：-40°C至+85°C （范围是特定于应用程序） •回流焊温度：+260°C最大。为10秒 最大。 |
