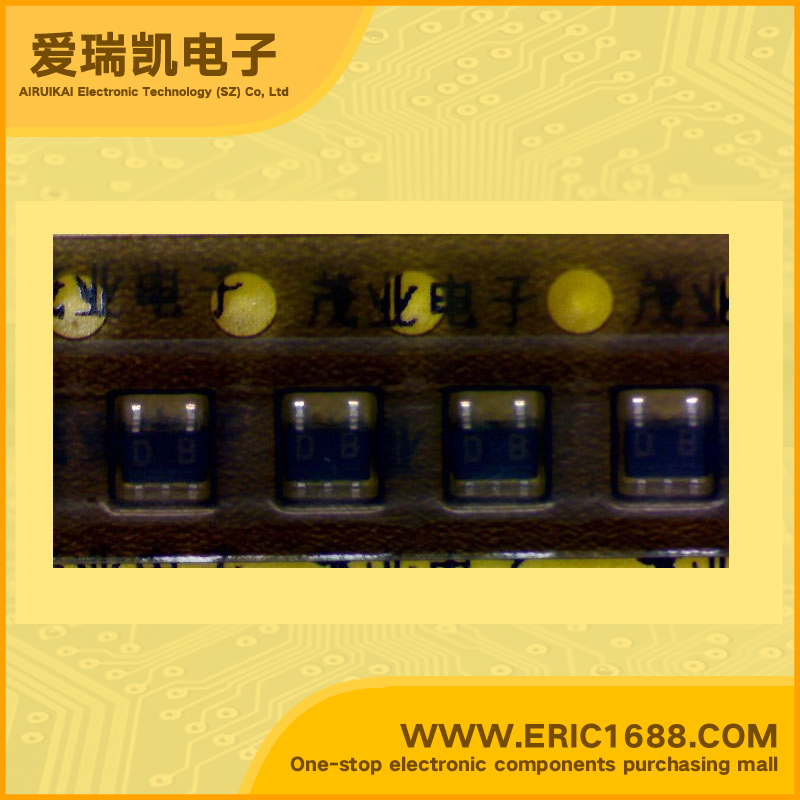

UPA572T Complex FET 30V 100mA/0.1A SOT-353/SC70-5 marking DB forswitch 3V drive
| 最大源漏极电压Vds Drain-Source Voltage | 30V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 7V |
| 最大漏极电流Id Drain Current | 100mA/0.1A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 8Ω@ VGS = 4V, ID = 10mA |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | 0.8~1.5V |
| 耗散功率Pd Power Dissipation | 200mW/0.2W |
| Description & Applications | N-CHANNEL MOS FET (5-PIN 2 CIRCUITS) FOR SWITCHING The uPA572T is a super-mini-mold device provided with two MOS FET circuits. It achieves high-density mounting and saves mounting costs. FEATURES • Two source common MOS FET circuits in package the same size as SC-70 • Directly driven by 3 V power supply • Automatic mounting supported |
| 描述与应用 | N沟道MOS FET（5-PIN2电路） 对于开关 uPA572T是一个超小型模具装置 两个MOS FET电路。它实现了高密度安装 并节省了安装成本。 特点 •两个源常见的MOS场效应管电路的包 SC-70相同的尺寸 •3 V电源直接驱动 •支持自动安装 |
