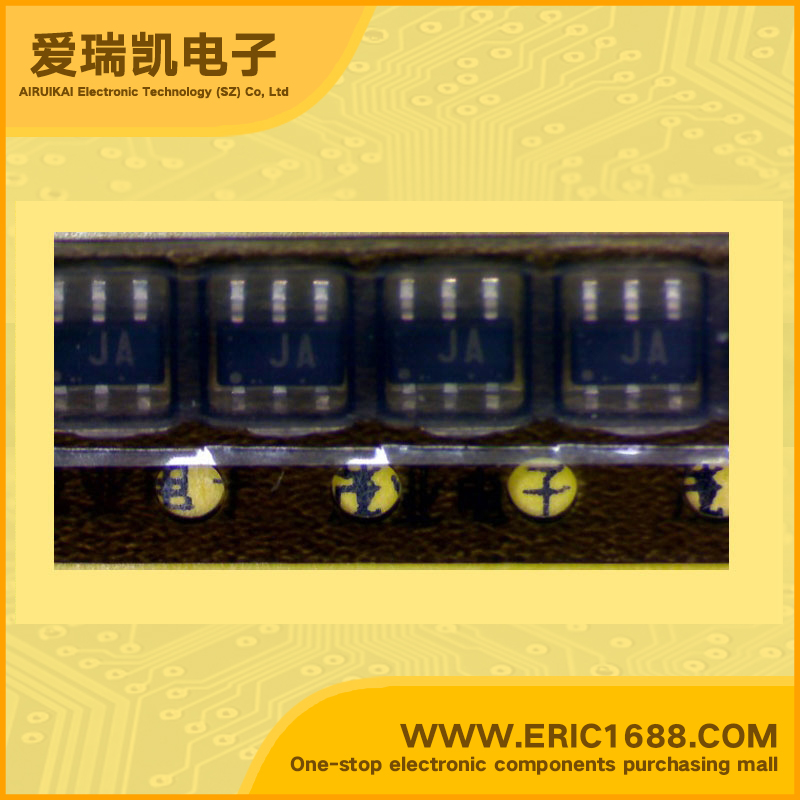

UPA603T Complex FET -50V -100mA/-0.1A SOT-163/SOT23-6 marking JA

Hot selling goods

Product description
最大源漏极电压Vds
Drain-Source Voltage
-50V
最大栅源极电压Vgs(±)
Gate-Source Voltage
16V
最大漏极电流Id
Drain Current
-100mA/-0.1A
源漏极导通电阻Rds
Drain-Source On-State Resistance
60Ω@ VGS = -10V, ID = -10mA
开启电压Vgs(th)
Gate-Source Threshold Voltage
-1.5~-2.5V
耗散功率Pd
Power Dissipation
300mW/0.3W
Description & ApplicationsN-CHANNEL MOS FET (6-PIN 2 CIRCUITS) The uPA602T is a mini-mold device provided with two MOS FET circuits. It achieves high-density mounting and saves mounting costs. FEATURES • Two MOS FET circuits in package the same size as SC-59 • Complement to uPA603T • Automatic mounting supported
描述与应用N沟道MOS FET(6-PIN2电路) 的uPA602T是一个小型的模具装置,设置有两个 MOS FET电路。它实现了高密度安装, 节省了安装成本。 特点 •两个MOS FET的电路包的大小相同 SC-59 •补充uPA603T的 •支持自动安装
