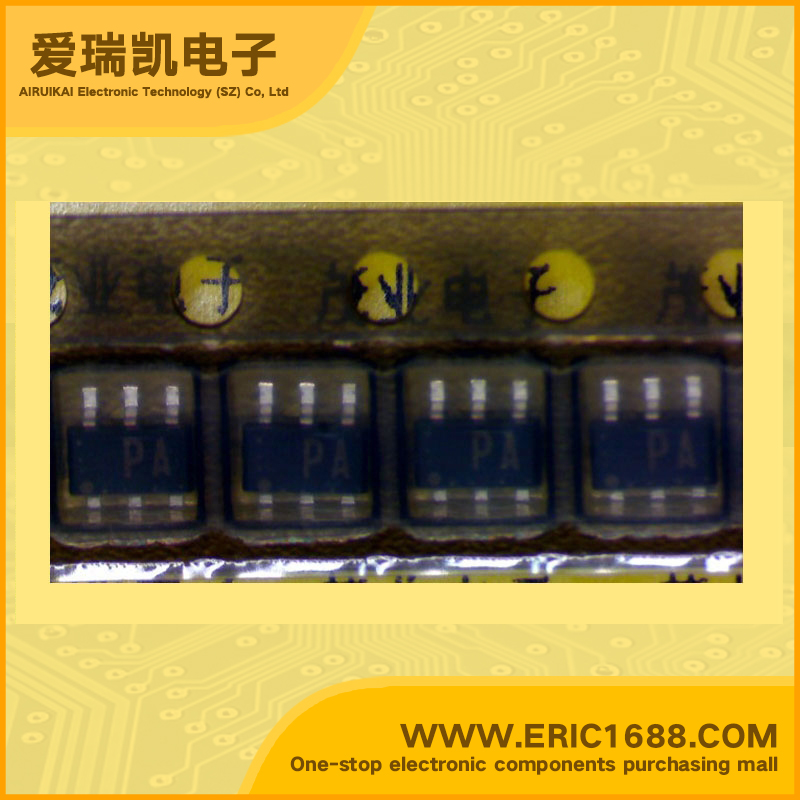

UPA609T NPN+PNP Complex Bipolar Transistor 60V/-60V 500mA/-500mA 75~300 SOT-163/SC-74 marking PA switch and digital circuit application

Model：UPA609T
Mark / screen / code / typing：PA
Manufacturer：
Date Code：05+ 05+
Package：SOT-163/SC-74
Standard Package：3000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	60V/-60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	40V/-40V
集电极连续输出电流IC Collector Current(IC)	500mA/-500mA
截止频率fT Transtion Frequency(fT)	200MHz/150MHz
直流电流增益hFE DC Current Gain(hFE)	75~300/75~300
管压降VCE（sat） Collector-Emitter Saturation Voltage	750mV/-750mV
耗散功率Pc Power Dissipation	300mW
Description & Applications
描述与应用
