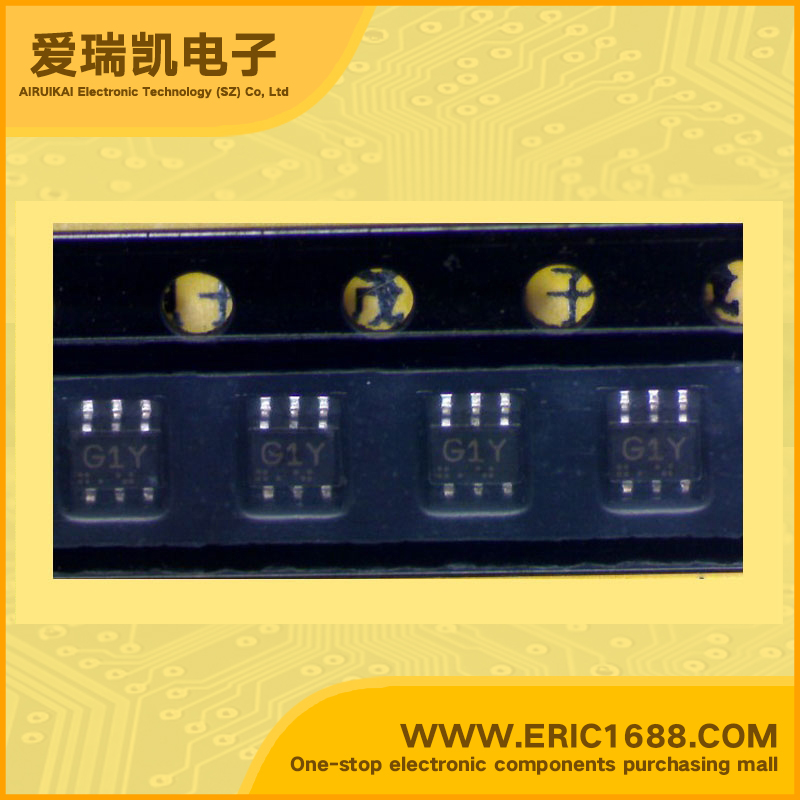

RF amplifier UPG2110TB-E3 SOT-363 marking G1Y
| 频率 Frequency | 889MHz~960MHz |
| P1dB | |
| 增益 Gain | 30dB |
| 噪声系数 Noise Figure | |
| RF 类型 RF Type | PDC, IS-136 |
| 电源电压 Voltage - Supply | 2.7V~3.3V |
| 电源电流 Current - Supply | 25mA~35mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES • GaAs INTEGRATED CIRCUIT • L-BAND PA DRIVER AMPLIFIER • Low operation voltage : VDD1 = VDD2 = 3.0 V • fRF : 889 to 960 MHz, 1429 to 1453 MHz@Pout = +8 dBm • Low distortion : Padj1 = −60 dBc TYP. @VDD = 3.0 V, Pout = +8 dBm, VAGC = 2.5 V External input and output matching • Low operation current : IDD = 25 mA TYP. @VDD = 3.0 V, Pout = +8 dBm, VAGC = 2.5 V External input and output matching • Variable gain control function : ∆G = 40 dB TYP. @VAGC = 0.5 to 2.5 V External input and output matching • 6-pin super minimold package APPLICATION • Digital Cellular : PDC, IS-136 etc. |
| 描述与应用 | 特点 •砷化镓集成电路 •L波段PA驱动放大器 •低电压工作：VDD1= VDD2= 3.0 V •FRF：889至960 MHz，1429至1453兆赫=+8 dBm的功率输出， •低失真：Padj1=-60 dBc的TYP。 @ VDD=3.0 V，功率输出=+8 dBm时，VAGC= 2.5 V 外部输入和输出匹配 •低工作电流：IDD=25 mA（典型值）。 @ VDD=3.0 V，功率输出=+8 dBm时，VAGC= 2.5 V 外部输入和输出匹配 •可变增益控制功能：ΔG=40 dB（典型值）。 @ VAGC=0.5到2.5 V 外部输入和输出匹配 •6-pin超级迷你模具包 应用 •数字蜂窝：PDC，IS-136等。 |
