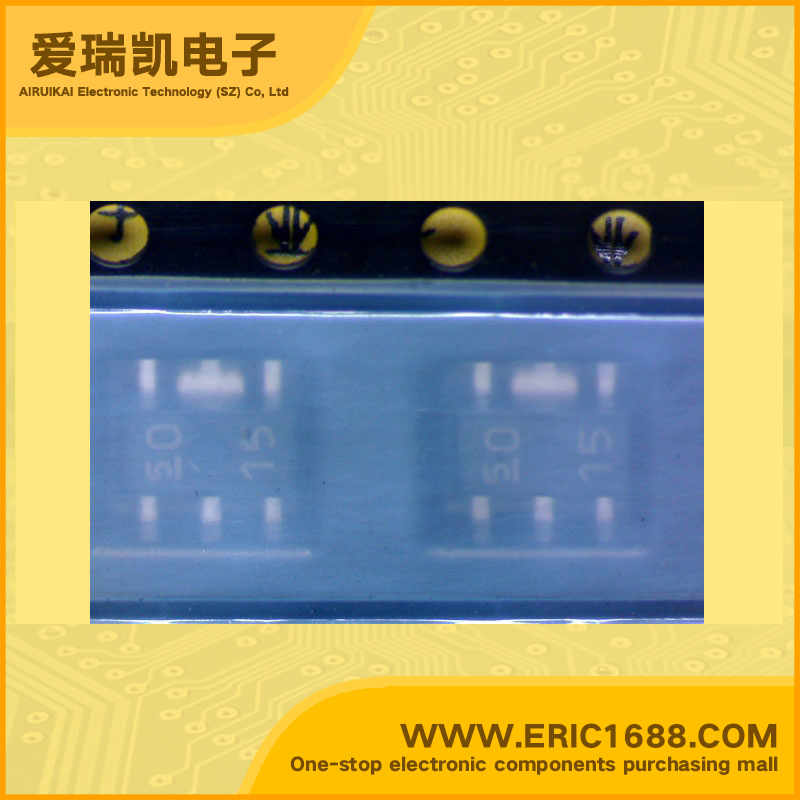

XC6405FV03PR LDO Voltage Regulator 3.3V 200mV/0.2V With Enable Pin SOT89-5 marking 50 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
7V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
500mW/0.5W
Description & Applications•High Current, High Speed LDO Regulators, Voltage Detector Function •Maximum Output Current : More than 500mA (600mA limit) (2.5V≦VROUT≦4.9V) •Dropout Voltage : 200mV @ 100mA 400mV @ 200mA •Operating Voltage Range : 2.0V ~ 6.0V •VR Setting Output Voltage : 0.9V~ 5.1V (±2%) •Detect Voltage Setting Range : 0.9V ~ 5.5V (±2%) More than 2.0V (VIN sensing) •VR.VD Temperature Coefficient : ±100ppm/℃ (TYP.) •Low Power Consumption : 90μA (TYP.) •High Ripple Rejection : 65dB (@10kHz) •Operational Temperature : - 40 ~ 85℃ •Low ESR Capacitor Compatible •Highly Accurate : ±2%
描述与应用•高电流,高速LDO稳压器,电压检测功能 •最大输出电流大于500mA(600mA的极限)(VROUT2.5V≦≦4.9V) •漏失电压:200mV的@100mA时400mV的200mA时 •工作电压范围:2.0V〜6.0V •VR设置输出电压:0.9V〜5.1V(±2%) •检测电压设定范围:0.9V〜5.5V(±2%)超过2.0V(VIN感应) •VR.VD温度系数:温度系数±100ppm/℃(典型值) •低功耗:90μA(典型值) •高纹波抑制:65分贝(@ 10千赫) •工作温度: - 40〜85℃ •低ESR电容器兼容 •高精度:±2%
