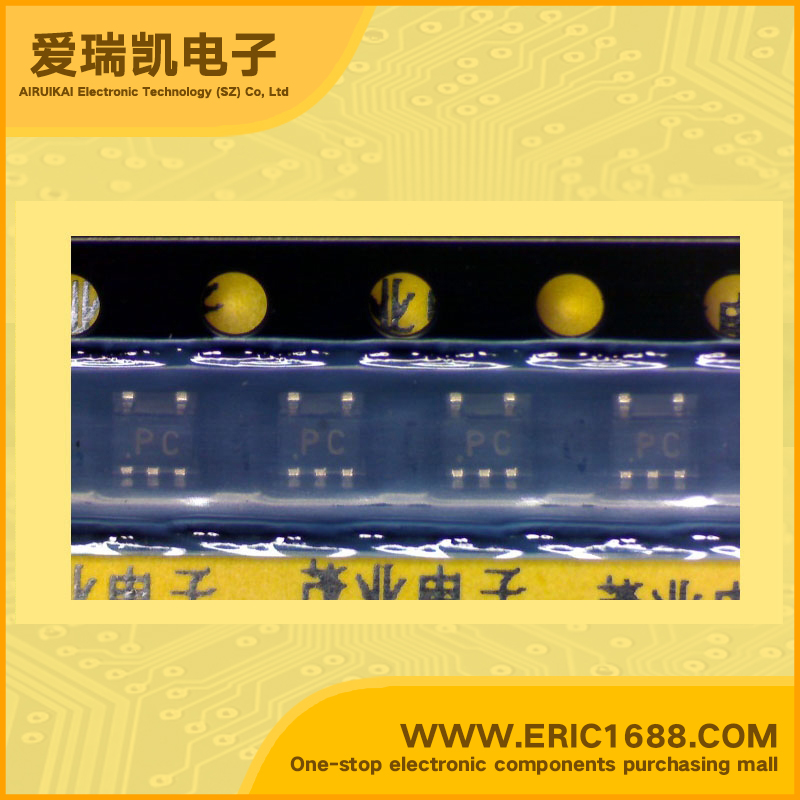

KRA553U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W R1=22KΩ R2=22KΩ SOT-353/usv/SC70-5 marking PC switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage |
-50V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -100MA/-0.1A |
| Input Resistance(R1) | 22KΩ |
| Base-Emitter Resistance(R2) | 22KΩ |
| Base-Emitter Input Resistance Ratio (R1/R2) | 1 |
| DC Current Gain(hFE) | |
| Transtion Frequency(fT) | 200MHZ |
| Power Dissipation （Pd） | 0.2W |
| Description & Applications | SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
FEATURES
With Built-in Bias Resistors.
Simplify Circuit Design.
Reduce a Quantity of Parts and Manufacturing Process.
High Packing Density
|
