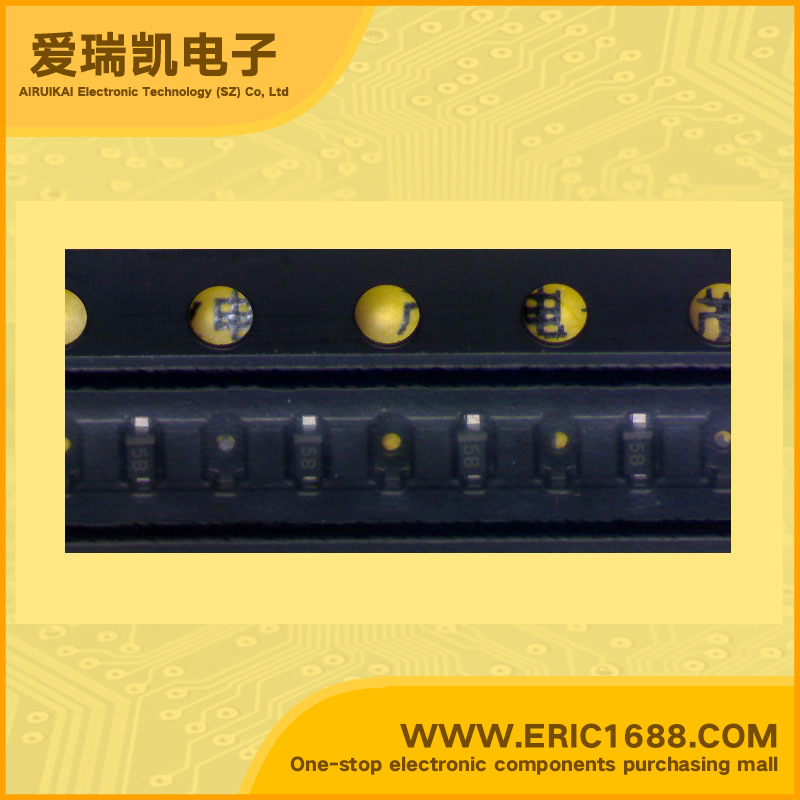

PG05FBESC TVS/ESD 5V SOD-523/0603-5V marking 5B
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 5.8V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 50W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features •TVS Diode for ESD Protection in Portable Electronics •50 Watts peak pulse power (tp=8/20 s) •Transient protection for data lines to IEC 61000-4-2(ESD) 15kV(Air), 8kV(Contact) IEC 61000-4-4(EFT) 40A(tp=5/50ns) IEC 61000-4-5(Lightning) 5A(tp=8/20 s) •Bidirectional Type Pin Configuration Structure. •Small package for use in portable electronics. •Suitable replacement for Multi-Layer Varistors in ESD protection applications. •Protects one I/O or power line. •Low clamping voltage. •Low leakage current. |
| 描述与应用 | 特性 •TVS二极管的ESD保护便携式电子产品 •50瓦峰值脉冲功率（TP =8/20秒） •瞬态保护数据线 IEC61000-4-2（ESD）15kV（空气），8kV（接触） IEC61000-4-4（EFT）40A（TP =5/50ns） IEC61000-4-5（闪电）5A（TP =8/20秒） •双向型引脚配置结构。 •使用小包装便于便携式产品使用 •多层压敏电阻器在ESD保护应用合适的替代品 •保护一个I / O或电源线 •低钳位电压。 •低漏电流。 |
