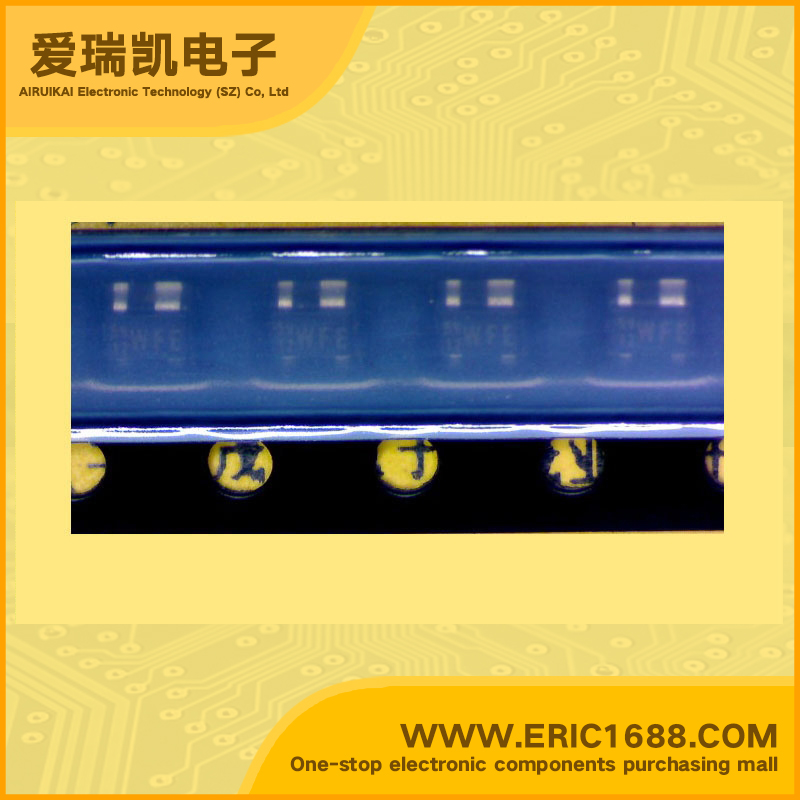

BFP93AW-GS08 NPN Transistors(BJT) 20V 50mA 6Ghz 40~150 400mV/0.4V SOT-343 marking WF RF amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 6Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 40~150 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon Planar RF Transistor Features • High power gain • Low noise figure • High transition frequency Applications RF amplifier up to GHz range |
| 描述与应用 | NPN硅平面RF晶体管 特点 •高功率增益 •低噪声系数 •高转换频率 应用 RF放大器高达GHz范围 |
