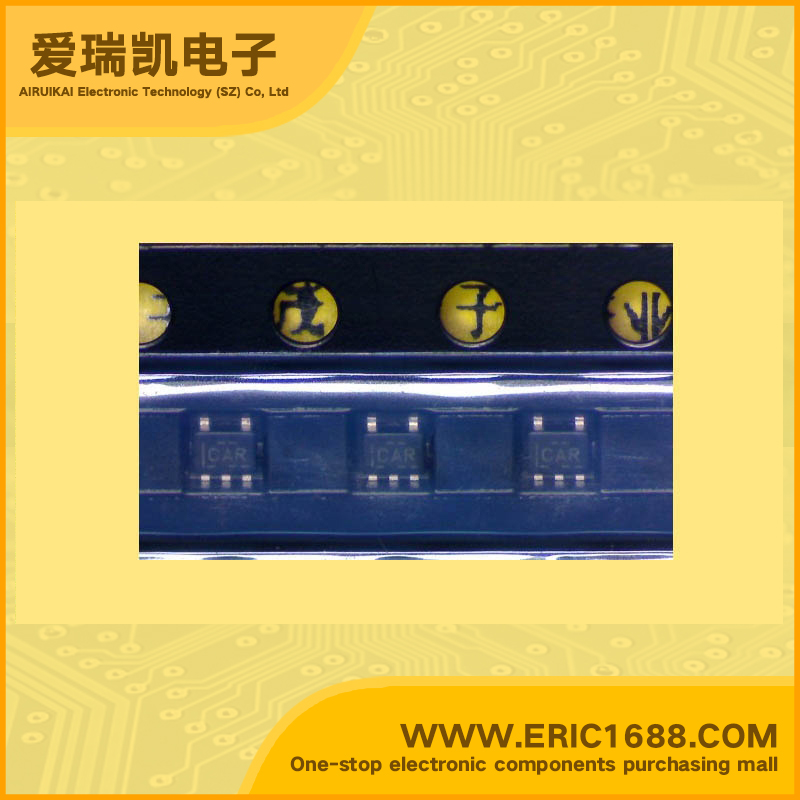

Integrated Circuit(IC) NAND gate SN74LVC1G00DRLR SOT-553 marking CAR

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
10µA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.7 V ~ 0.8 V
高逻辑电平
Logic Level - High
1.7 V ~ 2 V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4nS @5v,50pF
Description & ApplicationsSINGLE 2-INPUT POSITIVE-NAND GATE; Available in the Texas Instruments NanoStar™ • Ioff Supports Partial-Power-Down Mode Package Operation • Supports 5-V VCC Operation • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II • Inputs Accept Voltages to 5.5 V • Max tpd of 3.8 ns at 3.3 V • ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) • Low Power Consumption, 10-μA Max ICC – 1000-V Charged-Device Model (C101) • ±24-mA Output Drive at 3.3 V
描述与应用单路2输入正与非门; 可用德州仪器NANOSTAR™•IOFF支持部分掉电模式 包装操作 •支持5-V的VCC操作•闭锁性能超过100 mA每 JESD 78,II类 •接受输入电压为5.5 V •最大TPD为3.8 ns在3.3 V •ESD保护超过JESD22 - 2000-V人体模型(A114-A) •低功耗,10μA最大ICC - 1000-V带电器件模型(C101) •±24 mA输出驱动在3.3 V
