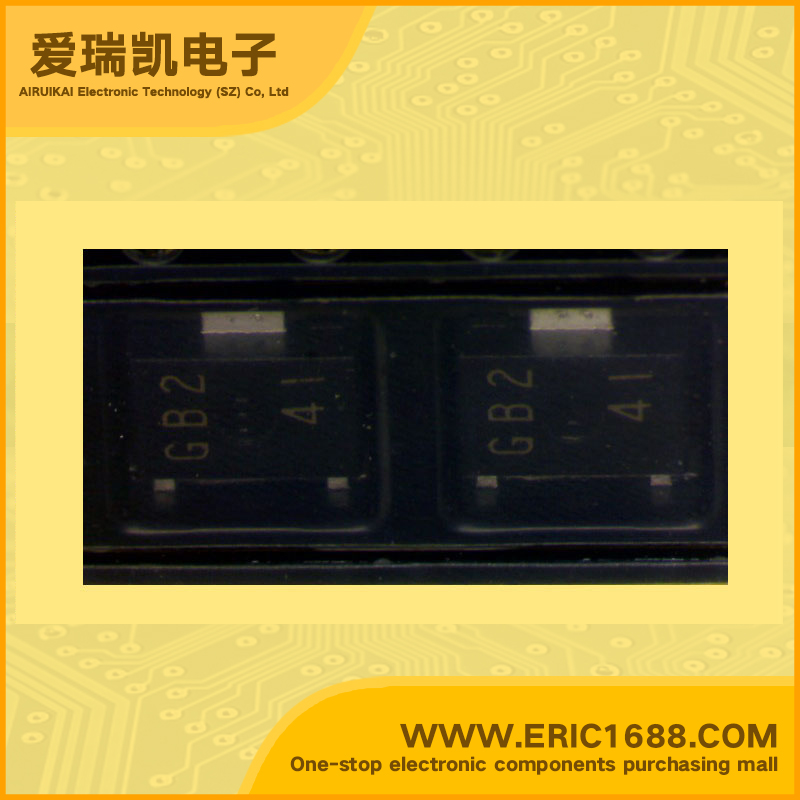

2SB1578 PNP transistors(BJT) -60V -5A 160~320 -300mV/-0.3V SC-84 marking GB2 low-frequency power amplifier/motor driver

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-60V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−60V
集电极连续输出电流IC
Collector Current(IC)
-5A
截止频率fT
Transtion Frequency(fT)

直流电流增益hFE
DC Current Gain(hFE)
160~320
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-300mV/-0.3V
耗散功率Pc
PoWer Dissipation
2W
Description & Applications PNP Silicon epitaxial planar transistor FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING The 2SB1578 features high current capacity in small dimension and is ideal for DC/DC converters and motor drivers. Features • New package with dimensions in between those of small signal and power signal package • High current capacitance • Low collector saturation voltage • Complementary transistor with 2SD2425
描述与应用 PNP硅外延平面晶体管 低频功率放大器和中速切换 2SB1578具有高电流容量小尺寸和DC/ DC转换器和电机驱动器的理想选择。 特点 •新的封装,尺寸之间的小信号和功率信号包 •高电流电容 •低集电极饱和电压 •互补晶体管2SD2425
