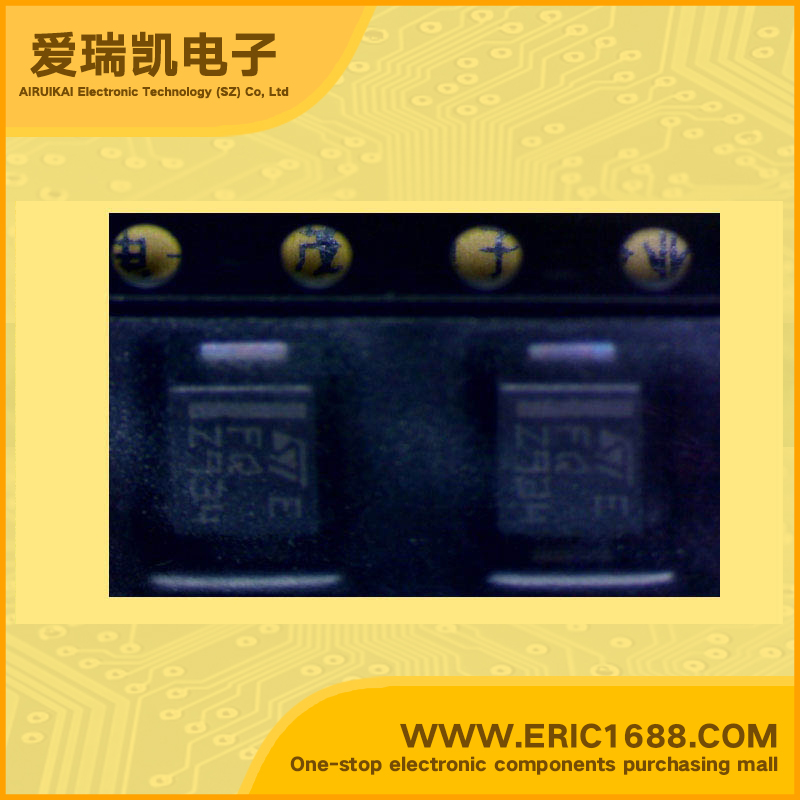

SM6T68A TVS/ESD 58.1V 6.5A 5W DO-214AA/SMB-68V marking FQ
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 58.1V |
| 反向击穿电压VBR Breakdown Voltage | 68V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 6.5A |
| 额定耗散功率Pd Power dissipation | 5W |
| Description & Applications | Features • PEAK PULSE POWER : 600 W (10/1000µs) • BREAKDOWN VOLTAGE RANGE :From 6.8V to 220 V • UNI AND BIDIRECTIONAL TYPES • LOW CLAMPING FACTOR • FAST RESPONSE TIME • UL RECOGNIZED |
| 描述与应用 | 特点 •峰值脉冲功率：600 W（10/1000μS） •击穿电压范围：6.8V至220 V •单向和双向类型 •低钳位因子 •快速的响应时间 •UL认证 |
