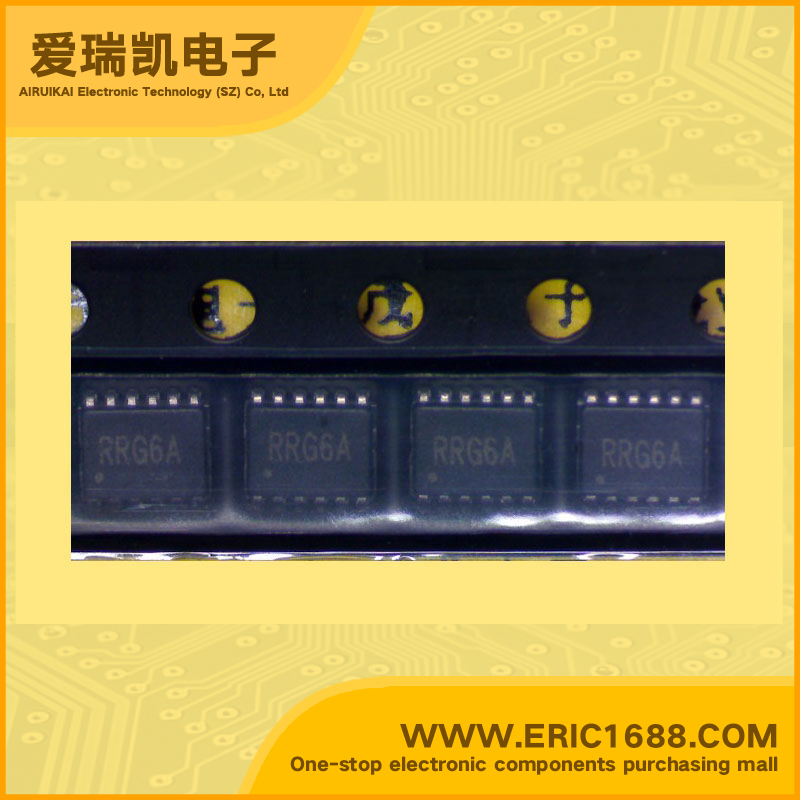

AAT3242ITP-IQ-T1 LDO Voltage Regulator 1.8/2.8V 400mV/200mV With Enable Pin TSOPJW-12 marking RRG Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 2 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 1.8/2.8V |
| 输出电流Io Current - Output | 300mA/150mA |
| 最大压降VDO Voltage - Dropout | 400mV/200mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 909mW/0.909W |
| Description & Applications | 300mA/150mA Dual CMOS LDO Linear Regulator ;• High/Low Current Outputs, 300mA/150mA • Low Dropout: ▪ LDO A: 400mV at 300mA ▪ LDO B: 200mV at 150mA • High Output Voltage Accuracy: ±1.5% • High PSRR: 65dB at 1kHz • 70μA Quiescent Current for Each LDO • Over-Temperature Protection • Two POK Outputs • Independent Power and Enable Inputs • Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors • 12-Pin TSOPJW and TDFN33 Packages • -40°C to +85°C Temperature Range |
| 描述与应用 | 300mA/150mA双CMOS LDO线性稳压器;•高/低电流输出，300mA/150mA •低压差： ▪LDOA：在300mA400mV的 ▪LDO B：150mA时为200mV的 •高输出电压精度：±1.5％ •高PSRR：65分贝在1kHz •70μA静态电流为每个LDO •过温保护 •两个POK输出 •独立的电源和使能输入 •使用低等效串联电阻（ESR）陶瓷电容器 •12引脚TSOPJW TDFN33封装 •-40°C至+85°C温度范围 |
