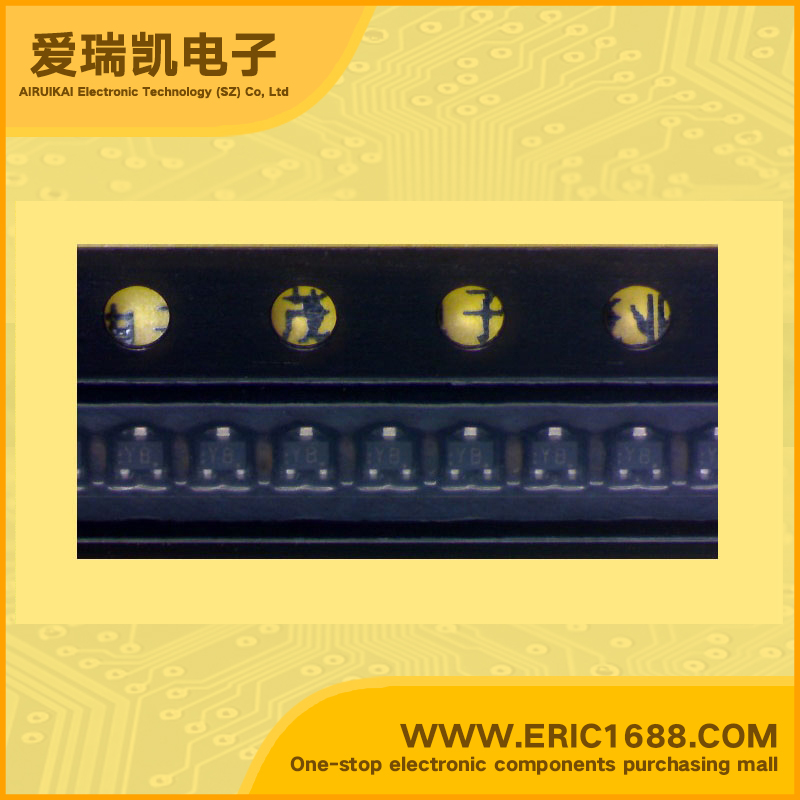

RN2102MFV PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 50 0.15W/150mW SOT-723/VESM marking YB switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.15W/150mW |
| Description & Applications | Features • Transistor Silicon PNP Epitaxial Type (PCT Process) • Ultra-small package, suited to very high density mounting • Incorporating a bias resistor into the transistor reduces the number of parts, so enabling the manufacture of ever more compact equipment and lowering assembly cost. • A wide range of resistor values is available for use in various circuits. • Complementary to the RN1101MFV to RN1106MFV Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 | 特点 •晶体管的硅PNP外延型（PCT工艺） •超小型封装，适合高密度安装 •结合到晶体管的偏置电阻器，降低了部件的数目， 所以使制造的更加紧凑的设备和降低 装配成本。 •宽范围的电阻值是可用于在各种电路。 •互补RN1101MFV RN1106MFV 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
