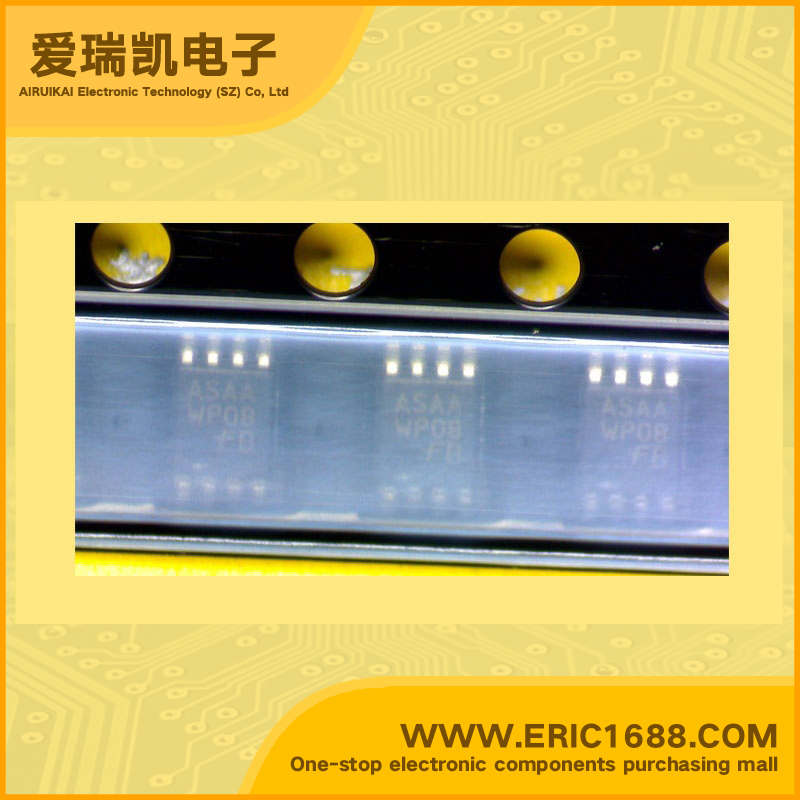

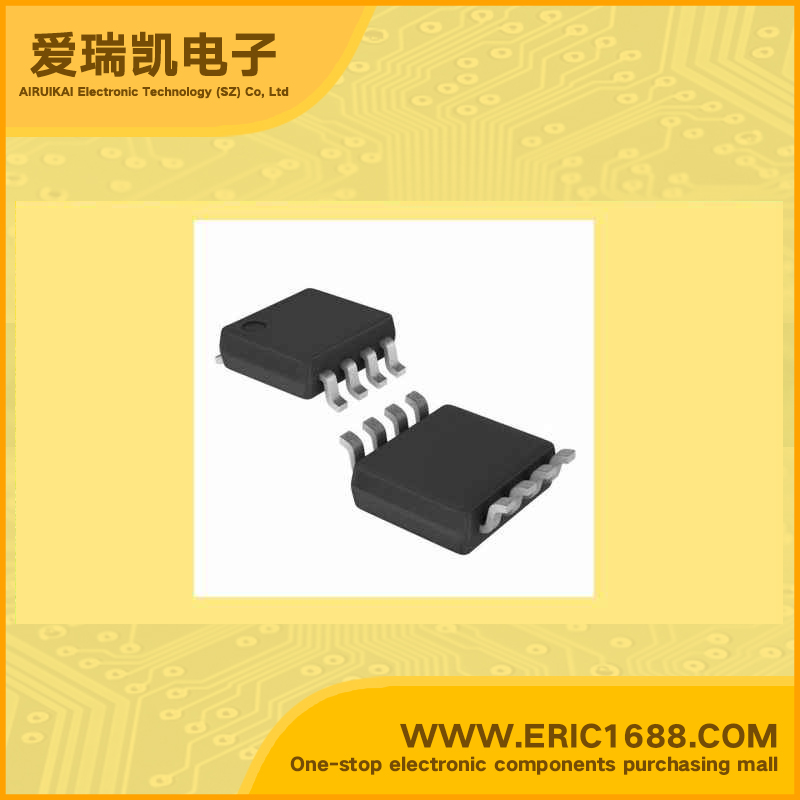

Integrated Circuit（IC） AND gate NC7WP08K8X VFSOP8/US8 marking WP08
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 2 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 0.9V~3.6V |
| 静态电流Iq Current - Quiescent (Max) | 0.9uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.7V~0.9V |
| 高逻辑电平 Logic Level - High | 1.6V~3.1V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 9.2ns @ 3V~3.6V,30pF |
| Description & Applications | Features TinyLogic ULP Dual 2-Input AND Gate Space saving US8 package Ultra small MicroPak Pb-Free package 0.9V to 3.6V VCC supply operation 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V tPD 2.5 ns typ for 3.0V to 3.6V VCC 5.0 ns typ for 2.3V to 2.7V VCC 6.0 ns typ for 1.65V to 1.95V VCC 7.0 ns typ for 1.40V to 1.60V VCC 11.0 ns typ for 1.10V to 1.30V VCC 27.0 ns typ for 0.90V VCC Power-Off high impedance inputs and outputs Static Drive (IOH/IOL) ±2.6 mA @ 3.00V VCC ±2.1 mA @ 2.30V VCC ±1.5 mA @ 1.65V VCC ±1.0 mA @ 1.40V VCC ±0.5 mA @ 1.10V VCC ±20 µA @ 0.9V VCC Low noise switching using design techniques of Quiet Series noise/EMI reduction circuitry Ultra low dynamic power |
| 描述与应用 | 特性 TinyLogicULP双2输入与门 节省空间US8包 超小型的MicroPak无铅封装 0.9V至3.6V的VCC电源操作 3.6V过压容限I/ O的VCC从0.9V到3.6V 吨PD 2.5纳秒典型为3.0V至3.6V的VCC 5.0纳秒典型2.3V到2.7V VCC 6.0纳秒典型为1.65V到1.95V VCC 7.0纳秒典型为1.40V至1.60V VCC 11.0 ns（典型值）为1.10V至1.30V VCC 27.0 ns（典型值）0.90V VCC 电源关闭高阻抗输入和输出 静态驱动（IOH/ IOL） ±2.6 mA@3.00V VCC ±2.1 mA@2.30V VCC ±1.5 mA@1.65V VCC ±1.0 mA@1.40V VCC ±0.5 mA@1.10V VCC ±20μA@0.9VVCC 低噪声开关设计技术 安静系列噪声/ EMI抑制电路 动态功耗超低 |
