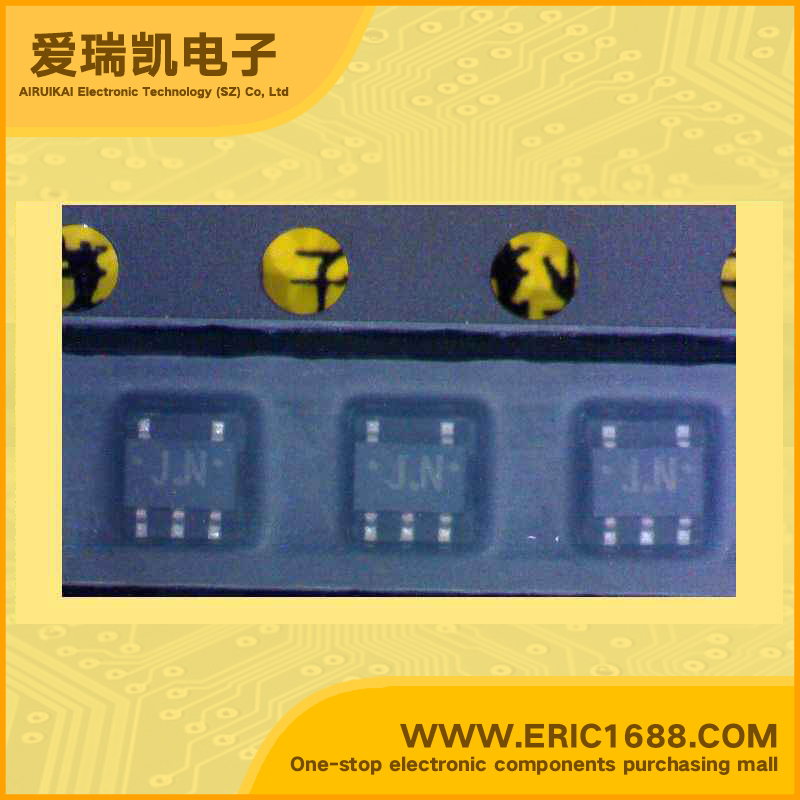

TC7SBL384AFU Signal Switch, Multiplexer, Decoder SOT-353/USV marking JN
| 逻辑类型 Logic Type | 总线开关 Bus Switch |
| 电路数 Number of Circuits | |
| 输入数 Number of Inputs | |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 2 V ~ 3.6 V |
| 低逻辑电平 Logic Level - Low | The TC7SBL384AFU is a low ON-resistance, high-speed CMOS 1-bit bus switch with low-voltage operation. The low ON-resistance of the switch allows connections to be made with minimal propagation delay. The device comprises a single-bit low-impedance switch with output-enable ( OE ) input. When OE is low, the switch is on and data can flow from port A to port B, or vice versa. When OE is high, the switch is open and a high-impedance state exists between the two ports. P-MOS and N-MOS channel blocks also render the device suitable for analog signal transmission. All inputs are equipped with protection circuits to guard against static discharge. Operating voltage: VCC = 2~3.6 V High speed operation: tpd = 0.31 ns (max) @3 V Low ON-resistance: RON = 5 Ω (typ.) @3 V ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V Power-down protection for inputs. ( OE input only) Package: USV |
| 高逻辑电平 Logic Level - High | TC7SBL384AFU是一个低导通电阻，高速CMOS1-位总线开关，低电压操作。低导通电阻的开关允许以最小的传播延迟连接。该装置包括一个单个位的低阻抗的开关输出使能（OE）输入。当OE低，开关和数据流可以从端口A端口B，反之亦然。当OE高，开关打开和高阻抗状态之间存在着两个端口。P-MOS和N-MOS沟道块也呈现设备适合传输模拟信号。所有输入都配有保护电路，以防止静电放电。 工作电压：VCC= 2〜3.6 V 高速运行：TPD=0.31NS（最大值）@3 V 低导通电阻：RON= 5Ω（典型值）@3 V ESD性能：机器型号≥±200 V 人体模式≥±2000 V 断电保护输入。（OE输入） 包装：USV |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
