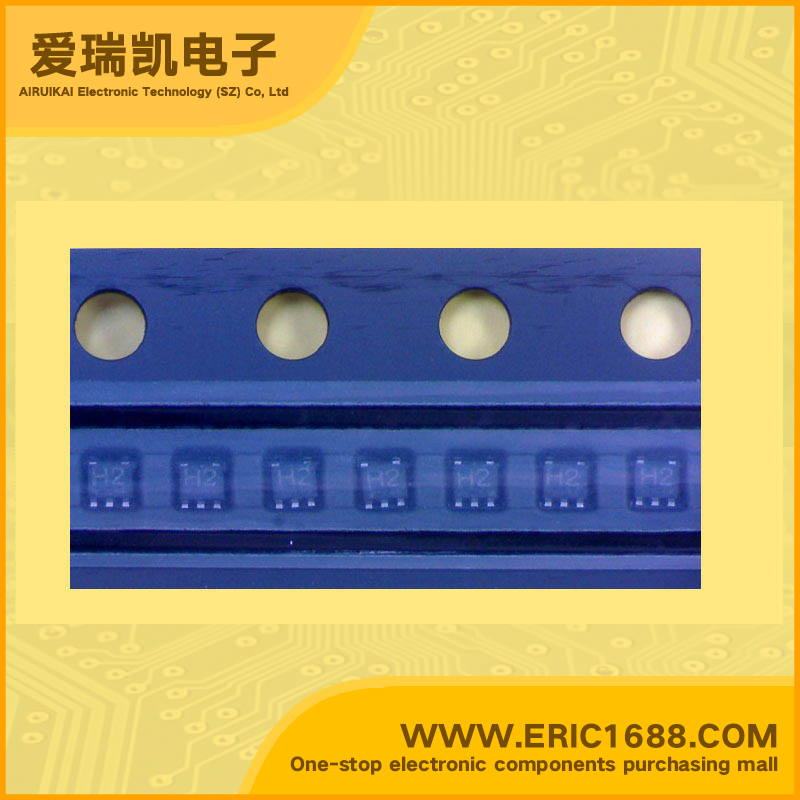

Integrated Circuit（IC） AND gate TC7SH08FS SOT-953/FSV marking H2
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | |
| 低逻辑电平 Logic Level - Low | 0.5V |
| 高逻辑电平 Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.9ns @4.5V~5.5V ，50pF |
| Description & Applications | 2-Input AND Gate ；High speed : tpd = 4.3ns (typ.) at VCC = 5V, 15pF Low power dissipation : ICC = 2 μA (max) at Ta = 25°C High noise immunity : VNIH = VNIL = 28% VCC (min) 5.5-V tolerant inputs Wide operating voltage range: VCC = 2 to 5.5 V |
| 描述与应用 | 2输入与门;高速：TPD =4.3ns（典型值），VCC = 5V时，15PF 低功耗：ICC= 2μA（最大值）在Ta= 25°C 高抗干扰性：VNIH= VNIL=28％VCC（分钟） 5.5-V宽容输入 宽工作电压范围：VCC=2至5.5 V |
