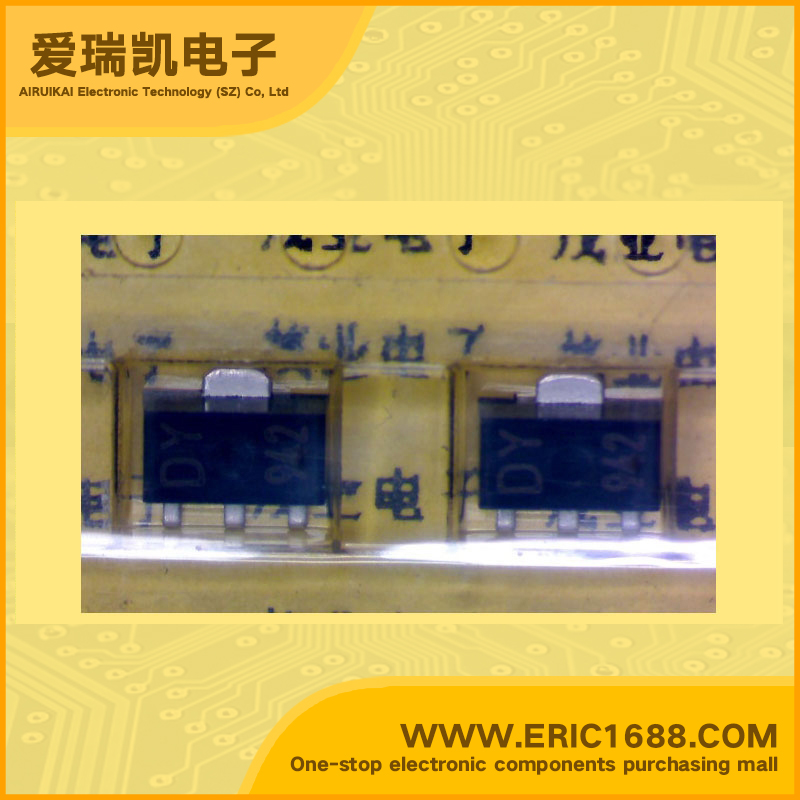

KTA1661-Y PNP transistors（BJT） -120V -800mA/-0.8A 120MHz 120~240 -1000mV/-1V SOT-89/SC-62 marking DY high current/high voltage
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -120V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -120V |
| 集电极连续输出电流IC Collector Current(IC) | -800mA/-0.8A |
| 截止频率fT Transtion Frequency(fT) | 120MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -1000mV/-1V |
| 耗散功率Pc PoWer Dissipation | 500mW/0.5W |
| Description & Applications | PNP epitaxial planar transistor HIGH CURRENT APPLICATION. FEATURES High Voltage High Transition Frequency Small Flat Package. Complementary to KTC4373 |
| 描述与应用 | PNP外延平面晶体管 高电流应用。 特点 高电压 高转换频率 小型扁平包装。 互补型KTC4373 |
