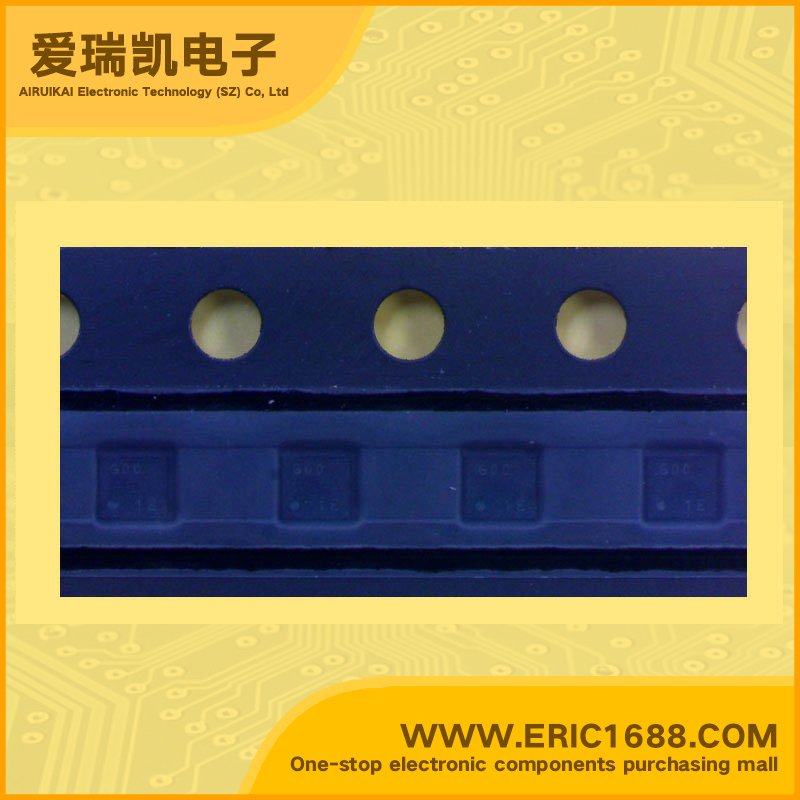

Integrated Circuit(IC) NAND gate TC7WG00FC CST8 marking G00

Price (excluding freight):
Batches(PCS):
$0.209
≤99
$0.188
≤499
$0.157
≤999
$0.136
≤4999
$0.125
FCL

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
0.9V~3.6V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.7V~0.8V
高逻辑电平
Logic Level - High
0.9V~2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
2.5ns @ 3.3V,50pF
Description & ApplicationsDual 2-Input NAND Gate ;High output current : ±8 mA (min) at VCC = 3 V • Super high speed operation : tpd = 2.5 ns (typ.) at VCC = 3.3 V,15pF • Operating voltage range : VCC = 0.9 to 3.6 V • 5.5-V tolerant inputs • 3.6-V power down protection outputs
描述与应用双2输入与非门;“高输出电流:±8 mA(分钟)在VCC=3 V •超高速运转:TPD =2.5 ns(典型值)     在VCC =3.3 V,15PF •工作电压范围:VCC= 0.9到3.6 V •5.5-V宽容输入 •3.6-V断电保护输出“
