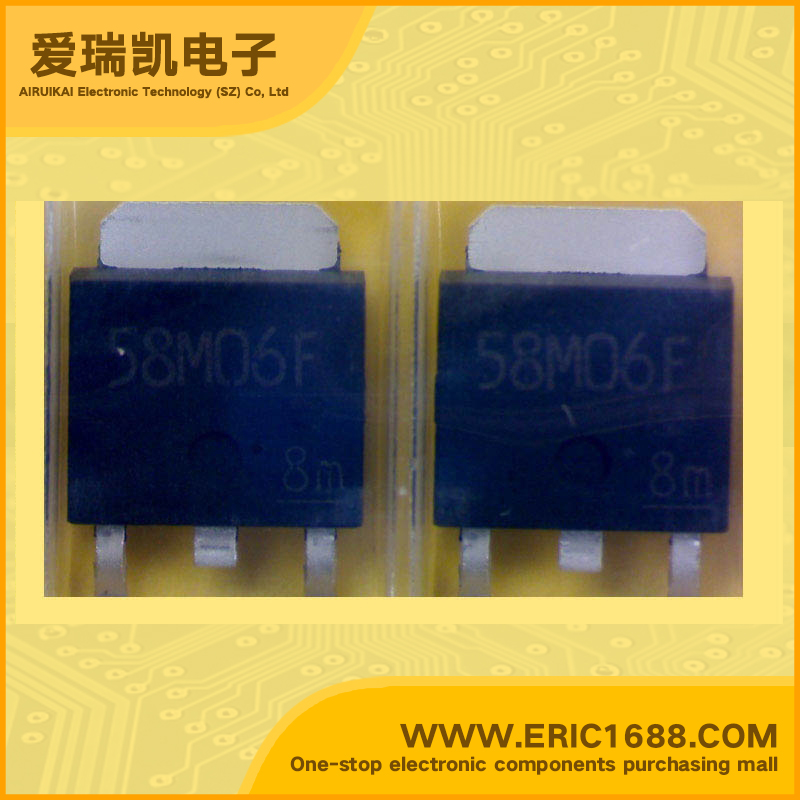

TA58M06F LDO Voltage Regulator 6V 420mV/0.42V TO-252/PW-MOLD marking 58M06F Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
29V
输出电压VOUT
Voltage - Output
6V
输出电流Io
Current - Output
500mA/0.5A
最大压降VDO
Voltage - Dropout
0.65 V (Max) (@IOUT = 500 mA)
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
1W
Description & ApplicationsTOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic. * 500 mA Low Dropout Voltage Regulator. * The TA58M**F Series consists of fixed-positive-output, low-dropout regulators with an output current of 500 mA (max) that utilize PNP transistors for the output stage. Low dropout voltage and standby current make the TA58M**F Series suitable for applications requiring low power consumption. * Maximum output current : 500 mA . * Output voltage : 5 / 6 / 8 / 9 / 10 / 12 / 15 V . * Output voltage accuracy : VOUT ± 3% (@Tj = 25°C) . * Low-dropout voltage : 0.65 V (Max) (@IOUT = 500 mA) . * Protection function : Overcurrent protection / overheating protection / Reverse connection of power supply / 60 V load dump .
描述与应用东芝双极型线性集成电路硅单片。 *500 mA低压降稳压器。 * TA58M** F系列包括固定正输出,低压差稳压器的输出电流为500 mA(最大),利用PNP晶体管输出级。低压差电压和待机电流,使TA58M** F系列适合要求低功耗的应用。 *最大输出电流:500毫安。 *输出电压:5/6/8/9/10/12/15 V。 *输出电压精度:VOUT±3%(@ TJ= 25°C)。 *低压差电压:0.65 V(最大)(@ IOUT= 500毫安)。 *保护功能:过电流保护/过热保护/电源/60 V负载突降的反向连接。
