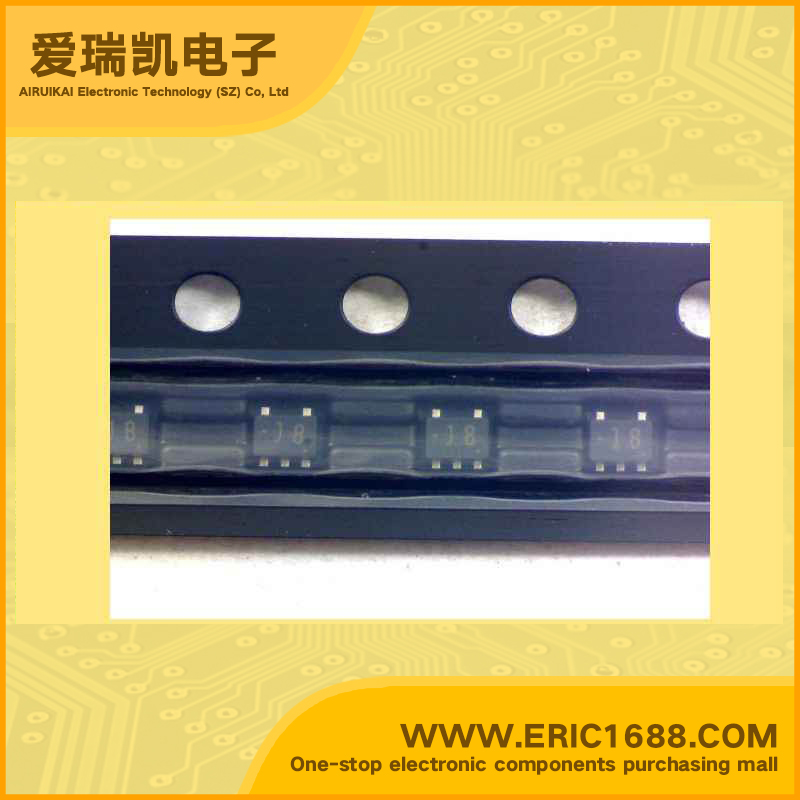

TC7SZ86FE Integrated Circuit (IC) Logic-Gate and Inverter IC GATE XOR 1CH 2-INP ESV

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.8v~5.5v
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-24mA,24mA
低逻辑电平
Logic Level - Low
0.12v~0.25v
高逻辑电平
Logic Level - High
0.75v~0.88v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
2.9ns @ 5V,50pF
Description & Applications TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic. 2-Input EXCLUSIVE OR Gate. * High output current : ±24mA (min) at VCC = 3V . * Super high speed operation : tpd = 2.9ns (typ.) at VCC = 5V, 50pF . * Operating voltage range : VCC = 1.65 to 5.5V. * 5.5-V tolerant inputs . * 5.5-V power down protection output . * Matches the performance of TC74LCX series when operated at 3.3-V VCC.
描述与应用 东芝CMOS数字集成电路硅单片。 2输入异或门。 *高输出电流的±24mA电流(分钟)在VCC =3V。 *超高速操作:TPD =2.9ns(典型值),VCC = 5V时,50PF。 *工作电压范围:VCC= 1.65至5.5V。 *5.5-V宽容输入。 * 5.5-V断电保护输出。 *匹配时表现TC74LCX系列工作在3.3-V VCC。
