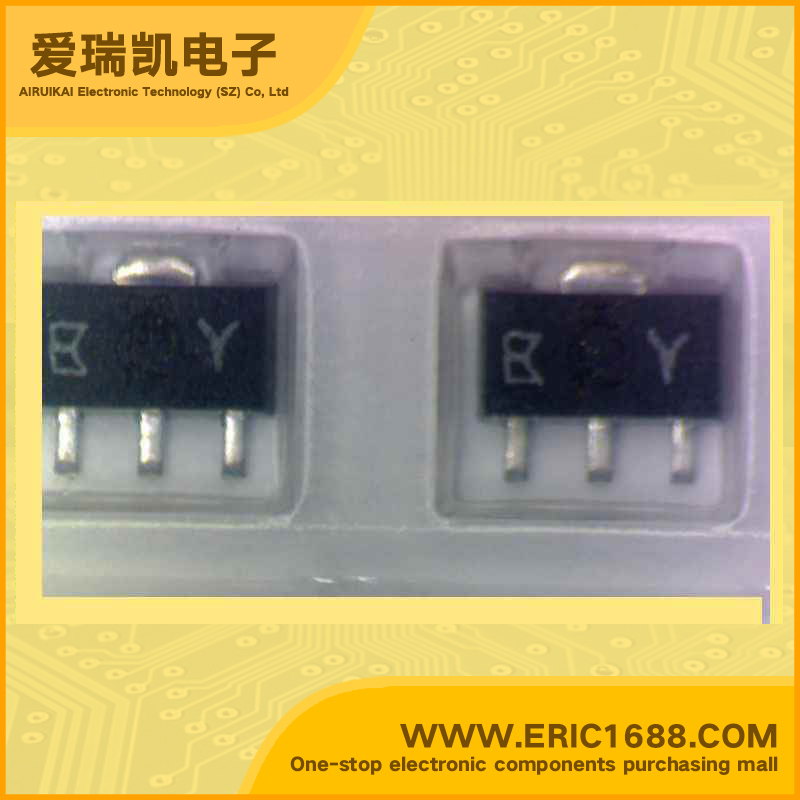

2SA1200-Y PNP 150V 0.05A SOT-89 MARKING BY
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-150V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
-150V |
| 集电极连续输出电流IC Collector Current(IC) |
-50mA |
| 截止频率fT Transtion Frequency(fT) |
120MHZ |
| 直流电流增益hFE DC Current Gain(hFE) |
70~240 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage |
-0.8V |
| 耗散功率Pc PoWer Dissipation |
800mW/0.8W |
| Description & Applications | TOSHIBA Transistor Silicon PNP Triple Diffused Type (PCT process) . * High Voltage Switching Applications . * High voltage: VCEO = −150 V . * High transition frequency: fT = 120 MHz (typ.). * Small flat package . * PC = 1 to 2 W (mounted on a ceramic substrate) . * Complementary to 2SC2880. |
| 描述与应用 | TOSHIBA晶体管的硅PNP三重扩散类型（PCT程序）。 *高电压开关应用. *高电压：VCEO=-150 V. *高转换频率：FT =120兆赫（典型值）. *小型扁平封装. * PC= 12 W（安装在陶瓷基板上）. *互补2SC2880. |
