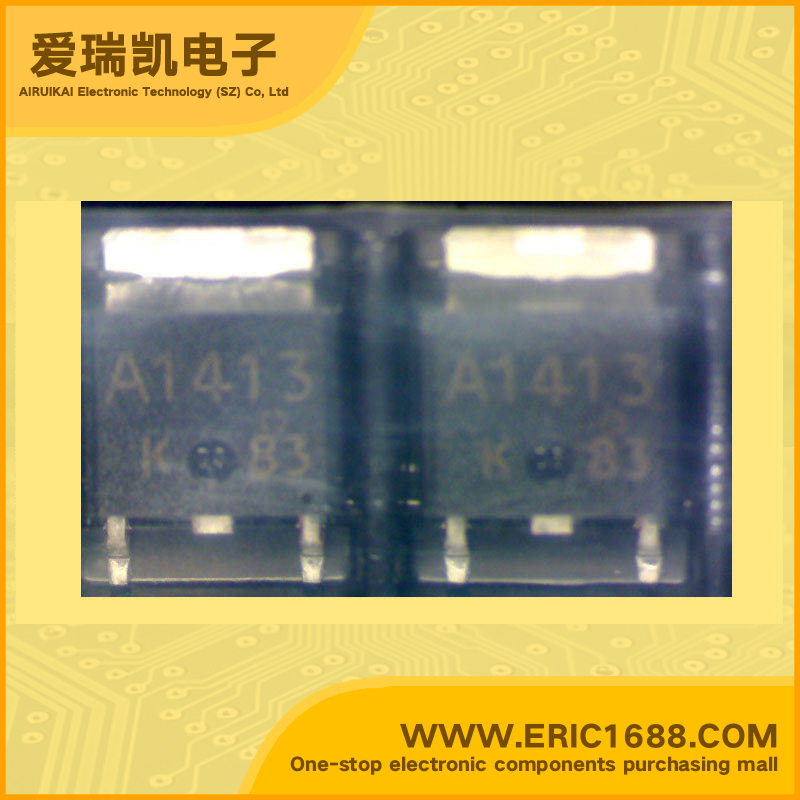

2SA1413-Z-E2 PNP transistors（BJT） -600V -1A 28MHz 30~120 -280mV/-0.28V TO-252/DPAK marking A1413
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -600V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −600V |
| 集电极连续输出电流IC Collector Current(IC) | -1A |
| 截止频率fT Transtion Frequency(fT) | 28MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 30~120 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -280mV/-0.28V |
| 耗散功率Pc PoWer Dissipation | 2W |
| Description & Applications | PNP silicon triple diffused transistor high voltage； high speed； complement to 2SC3632-Z |
| 描述与应用 | PNP硅三重扩散晶体管 高电压; 高速; 补充2SC3632-Z |
