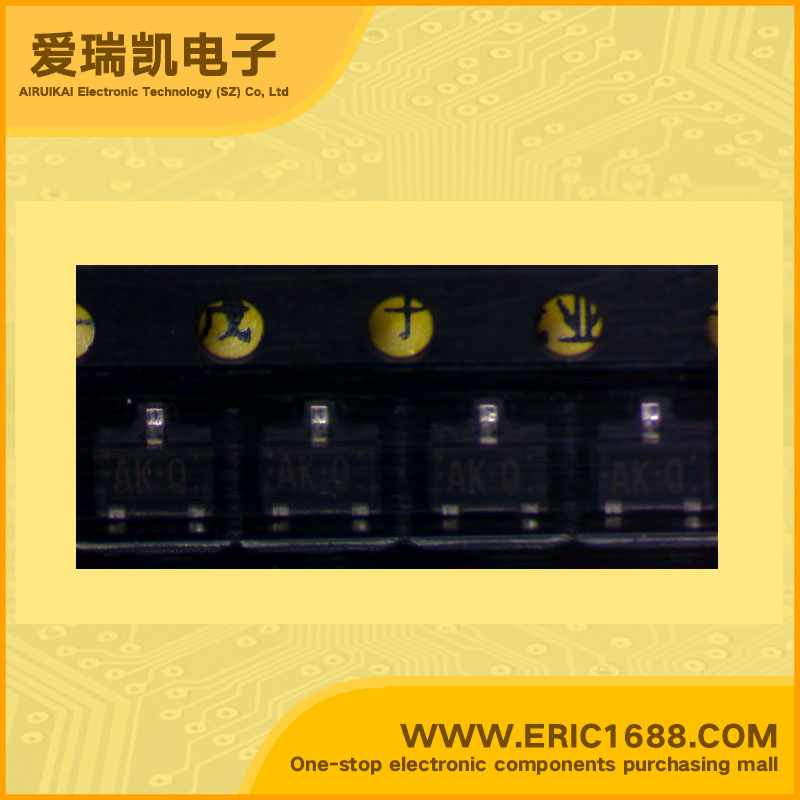

2SA1738 PNP transistors（BJT） -15V -30mA 1.5GHz 50~120 -100mV/-0.1V SOT-23/SC-59 marking AKQ highspeed switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −15V |
| 集电极连续输出电流IC Collector Current(IC) | -30mA |
| 截止频率fT Transtion Frequency(fT) | 1.5GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~120 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -100mV/-0.1V |
| 耗散功率Pc PoWer Dissipation | 200mW/0.2W |
| Description & Applications | Silicon PNP epitaxial planer type Features High-speed switch (pair with 2SC3757) Low collector to emitter saturation voltage VCE(sat). Mini type package, allowing downsizing of the equipment and automatic ins |
| 描述与应用 | 硅PNP外延刨床类型 特点 高速开关（对2SC3757） 低集电极到发射极饱和电压VCE（SAT） |
