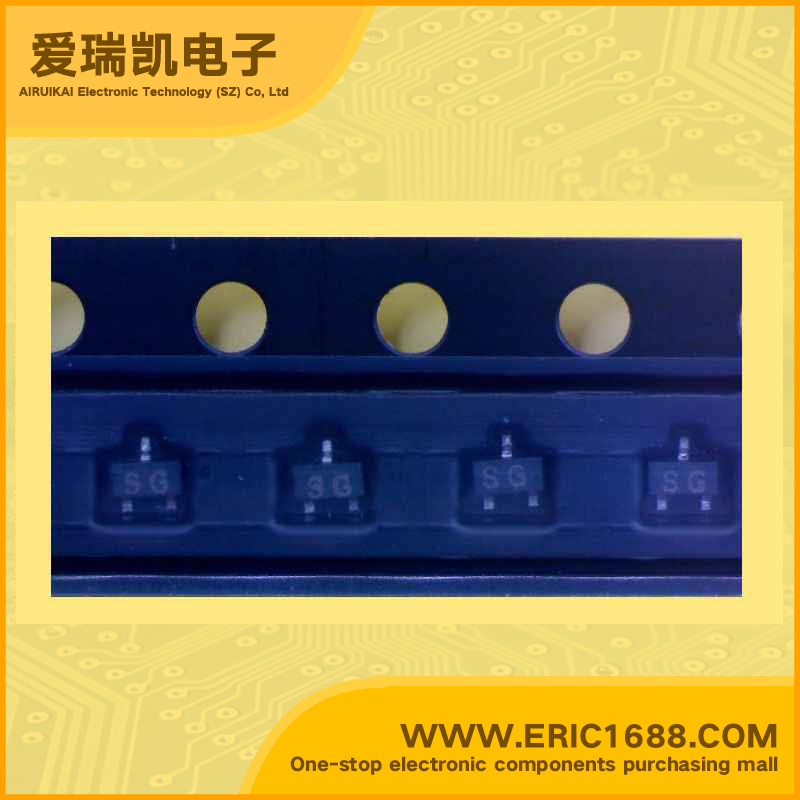

2SA1832-GR PNP transistors（BJT） -50V -150mA/-0.15A 80MHz 200~400 -100mV/-0.1V sot-523/SSM marking SG radio general amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | −50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | −150mA/-0.15A |
| 截止频率fT Transtion Frequency(fT) | 80MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -100mV/-0.1V |
| 耗散功率Pc PoWer Dissipation | 100mW/0.1W |
| Description & Applications | silicon PNP epitaxial type Audio Frequency General Purpose Amplifier Applications High voltage and high current: VCEO = −50 V, IC = −150 mA (max) Excellent hFE linearity: hFE (IC = −0.1 mA)/ hFE (IC = −2 mA) = 0.95 (typ.) High hFE: hFE = 70~400 Complementary to 2SC4738 Small package |
| 描述与应用 | 硅PNP外延型 音频通用放大器应用 高电压和高电流：VCEO=-50 V，IC= -150 mA（最大） 优秀HFE线性：HFE（IC= -0.1毫安）/ HFE（IC=-2毫安）= 0.95（平均值） 高HFE：HFE=70〜400 互补2SC4738 |
