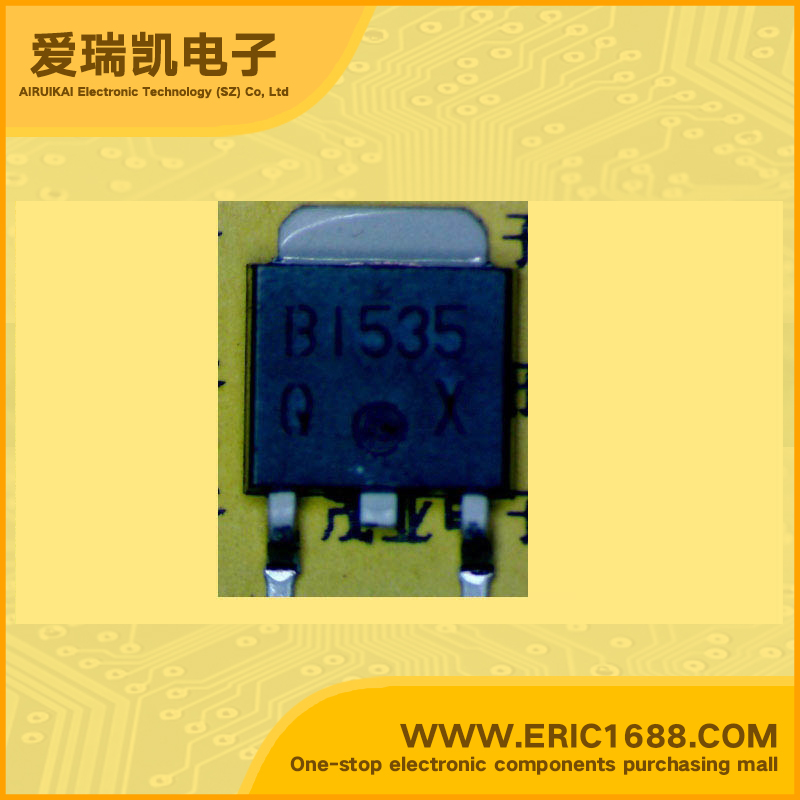

2SB1535 PNP transistors（BJT） -80V -3A 50MHz 390~1800 -1000mV/-1V TO-252/DPAK marking B1535 low-frequency /low power/high DC current amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流IC Collector Current(IC) | -3A |
| 截止频率fT Transtion Frequency(fT) | 50MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 390~1800 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -1000mV/-1V |
| 耗散功率Pc PoWer Dissipation | 1W |
| Description & Applications | Triple diffused planar PNP Silicon transistor Low frequency ,power amplifier Features High DC current Amp Low VCE Large collector power loss Wide SOA |
| 描述与应用 | 三重扩散平面PNP硅晶体管 低频，低功耗放大器 特点 高直流电流放大器 低VCE 大收藏家功率损耗 宽SOA |
