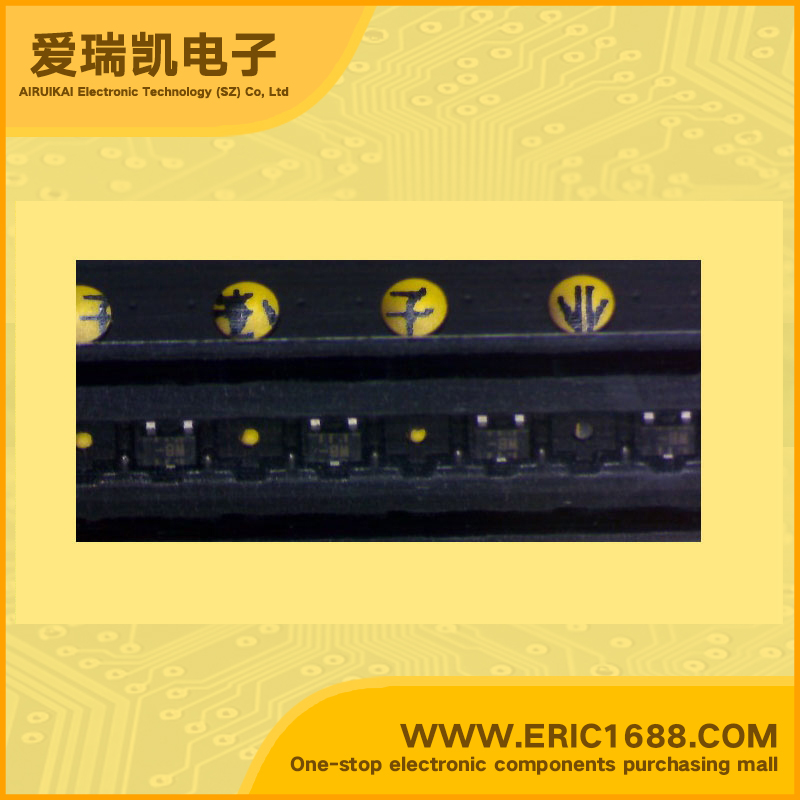

2SC5700wb NPN Transistors(BJT) 15V 50mA 12Ghz 100~170 SOT-623/MFPAK marking WB VHF/UHF wide band amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
4V
集电极连续输出电流IC
Collector Current(IC)
50mA
截止频率fT
Transtion Frequency(fT)
12Ghz
直流电流增益hFE
DC Current Gain(hFE)
100~170
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
80mW
Description & ApplicationsSilicon NPN Epitaxial VHF/UHF wide band amplifier Features • High power gain low noise figure at low power operation: |S21|2= 16 dB typ, NF = 1.0 dB typ (VCE = 1 V, IC = 5 mA, f = 900 MHz)
描述与应用NPN硅外延 VHF/ UHF宽频带放大器 特点 •高功率增益低噪声系数在低功耗运行: | S21| 2= 16 dB,NF=1.0 dB(VCE= 1 V,IC= 5毫安,F =900兆赫)
