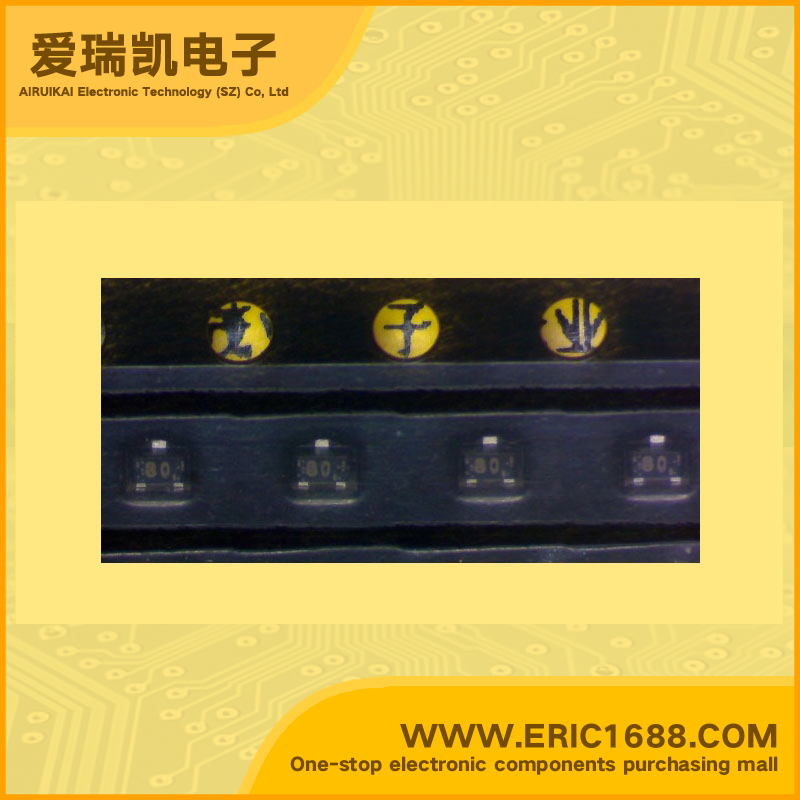

2SC5800 NPN Transistors(BJT) 9.0V 100mA/0.1A 4.5Ghz 100~145 SOT-523 marking 80 high frequency low noise
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 9.0V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 5.5V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 4.5Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~145 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | NPN SILICON RF TRANSISTOR FOR HIGH-FREQUENCY LOW NOISE FLAT-LEAD 3-PIN THIN-TYPE ULTRA SUPER MINIMOLD FEATURES • Low phase distortion, low voltage operation • Ideal for OSC applications • Flat-lead 3-pin thin-type ultra super minimold package |
| 描述与应用 | NPN硅RF晶体管 高频低噪声 扁平引线3引脚超薄型迷你型 特点 •低相位失真，低电压操作 •非常适于OSC应用 •扁平引线3引脚薄型迷你包装 |
