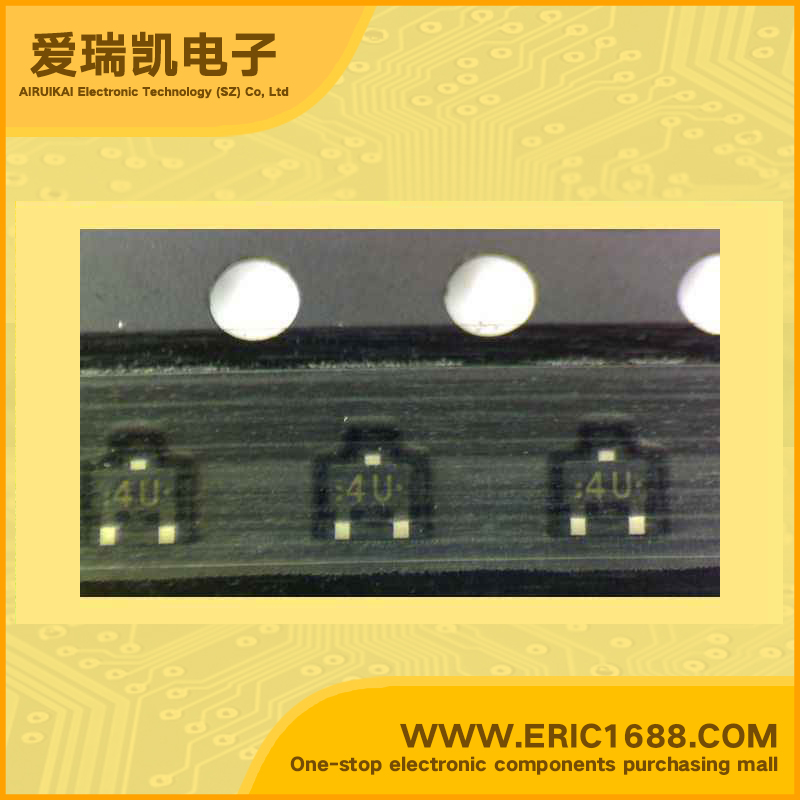

2SC6037J0L NPN Transistors(BJT) 15V 500mA/0.5A 200MHz 270~680 250mV/0.25V SOT-523/SC-75 marking 4U general amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 500mA/0.5A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 270~680 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | Silicon NPN epitaxial planar type general amplification *Features * Low collector-emitter saturation voltage VCE(sat) * SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing |
| 描述与应用 | NPN硅外延平面型 一般的放大 *特点 *低集电极 - 发射极饱和电压VCE（饱和） * SS-迷你型包装，使设备和自动减员 通过磁带插入包装 |
