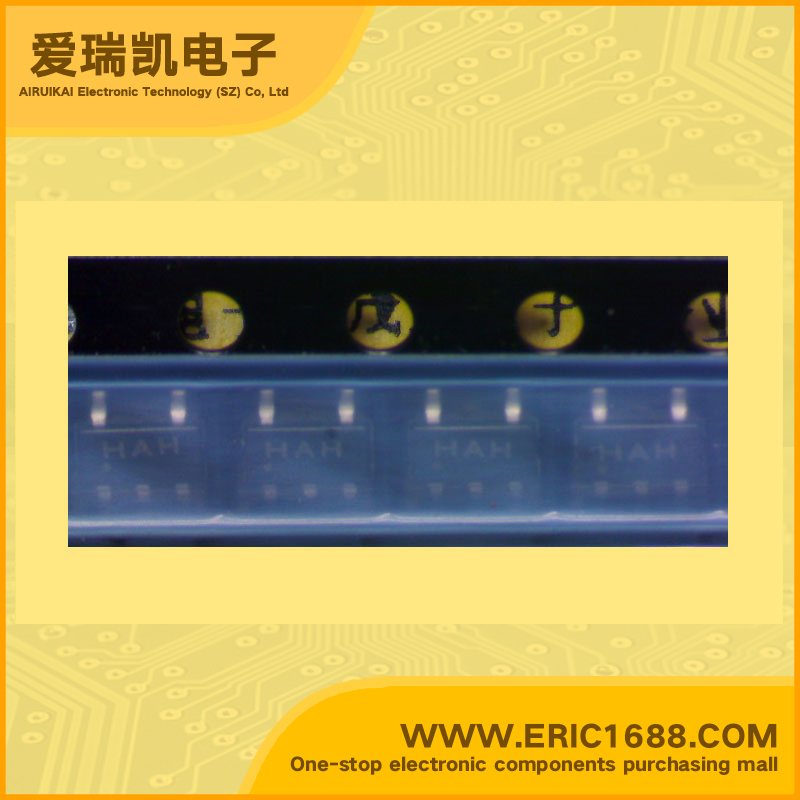

Integrated Circuit(IC) Inverting Schmitt trigger MC74HC1G14DTT1 SOT-153/SOT23-5/TSOP5/SC59?5 marking HA

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-2.6mA,2.6mA
低逻辑电平
Logic Level - Low
0.1V~0.26V
高逻辑电平
Logic Level - High
1.9V~5.68V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
12ns @ 4.5V,50pF
Description & ApplicationsInverting Schmitt trigger;Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) @ TA = 25°C High Noise Immunity Balanced Propagation Delays (tpLH = tpHL) Output Drive Capability: 5 LSTTL Symmetrical Output Impedance (IOH = IOL = 2 mA) ESD Performance: HBM > 2000V; MM > 200V
描述与应用反相施密特触发器;特性 高速:TPD =7纳秒(典型值)@ VCC = 5 V 低功耗:ICC=1微安(最大值)@ TA= 25°C 高抗噪声能力 平衡传输延迟(TPLH TPHL) 输出驱动能力:5输入通道 对称的输出阻抗(IOH= IOL= 2毫安) ESD性能:> 2000V HBM MM> 200V
