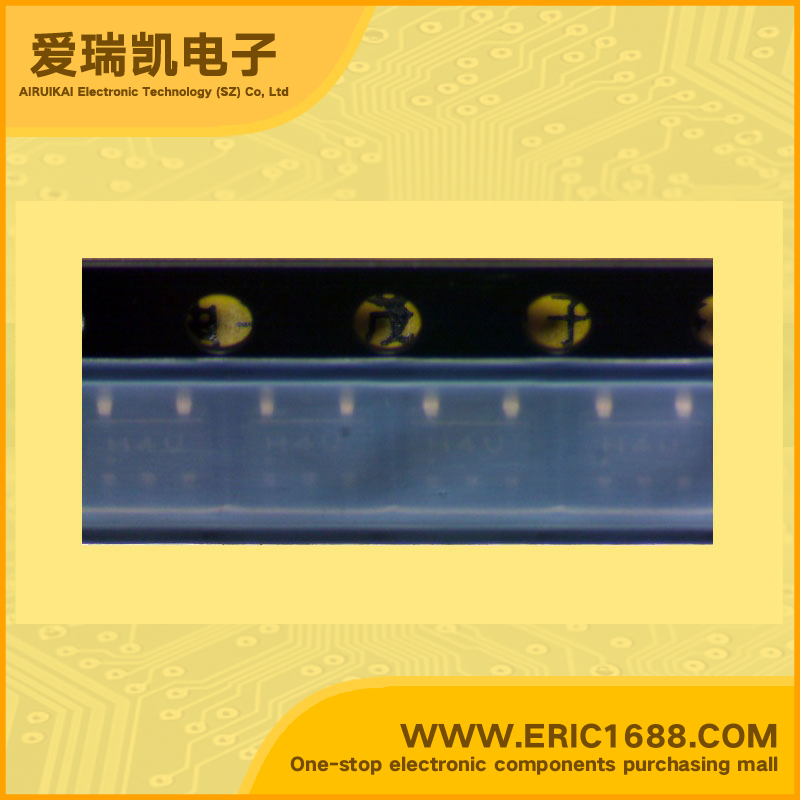

Integrated Circuit（IC） OR gate MC74HC1G32DTT1 SOT-153/SOT23-5/TSOP5/SC59?5 marking H4U
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平 Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 8ns @ 4.5V，50pF |
| Description & Applications | Single 2-input OR gate；Features High Speed: tPD = 7 ns (Typ) @ VCC = 5 V Low Power Dissipation: ICC = 1 uA (Max) @ TA = 25°C High Noise Immunity Balanced Propagation Delays (tpLH = tpHL) Symmetrical Output Impedance (IOH = IOL = 2 mA) Chip Complexity: FET = 44 These Devices are Pb−Free and are RoHS Compliant |
| 描述与应用 | 单路双输入或门；特性 高速：TPD =7纳秒（典型值）@ VCC = 5 V 低功耗：ICC=1微安（最大值）@ TA= 25°C 高抗噪声能力 平衡传输延迟（TPLH =TPHL） 对称的输出阻抗（IOH= IOL= 2毫安） 芯片的复杂性：FET= 44 这些器件无铅，符合RoHS标准 |
