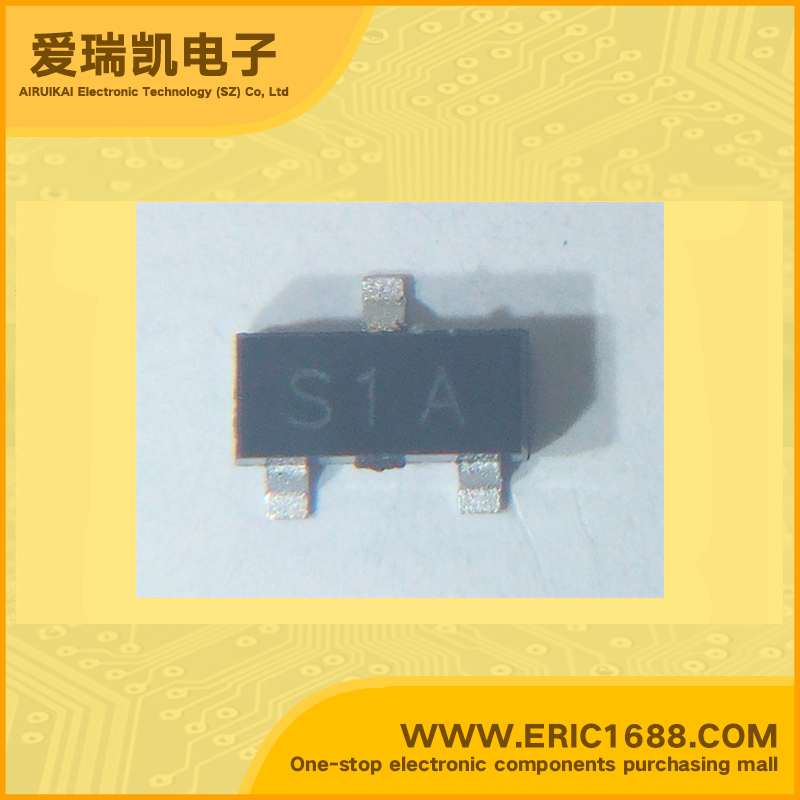

MMBT3904 NPN Transistors(BJT) 60V 200mA/0.2A 300Mhz 40~300 200mV~300mV SOT-23/SC-59 marking S1A switch and amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
60V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
40V
集电极连续输出电流IC
Collector Current(IC)
200mA/0.2A
截止频率fT
Transtion Frequency(fT)
300Mhz
直流电流增益hFE
DC Current Gain(hFE)
40~300
管压降VCE(sat)
Collector-Emitter Saturation Voltage
200mV~300mV
耗散功率Pc
Power Dissipation
Description & ApplicationsNPN Silicon Epitaxial Planar Transistor for switching and amplifier applications. ® As complementary type, the PNP transistor MMBT3906 is recommended. ® This transistor is also available in the TO-92 case with the type designation 2N3904.
描述与应用NPN硅外延平面晶体管 开关和放大器应用。 ®作为互补型,PNP 晶体管MMBT3906推荐。 ®这个晶体管也可以在TO-92 同类型案件指定2N3904。
List of related models
