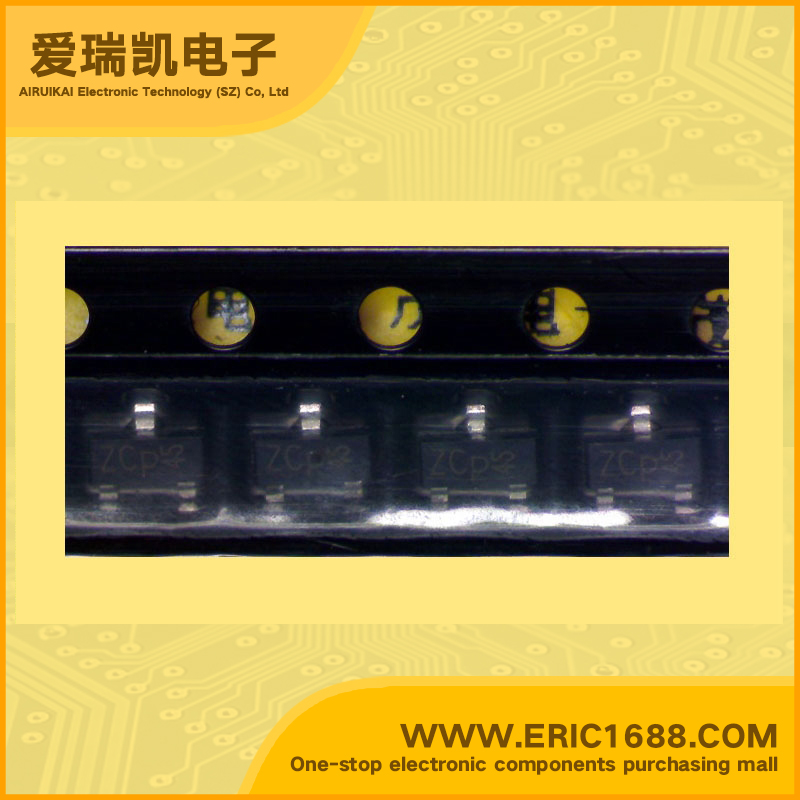

PBSS4350T PNP transistors（BJT） -50V -2A 100MHz 300 -370mV/-0.37V SOT-23/SC-59 marking ZC low power and 中powerDC-DCconvertor/Linear voltage regulation
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | -2A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 300 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -370mV/-0.37V |
| 耗散功率Pc PoWer Dissipation | 300mW/0.3W |
| Description & Applications | FEATURES • Low collector-emitter saturation voltage VCE（sat ）and corresponding low RCE（sat） • High collector current capability • High collector current gain • Improved efficiency due to reduced heat generation. APPLICATIONS • Power management applications • Low and medium power DC/DC convertors • Supply line switching • Battery chargers • Linear voltage regulation with low voltage drop-out |
| 描述与应用 | 特点 •低集电极 - 发射极饱和电压VCE（饱和）和相应的低RCE（饱和） •高集电极电流能力 •高集电极电流增益 •由于产生的热量减少，提高了效率。 应用 •电源管理应用 •低功率和中功率DC/ DC转换器 •供电线路开关 •电池充电器 •线性电压调节，低电压降 |
