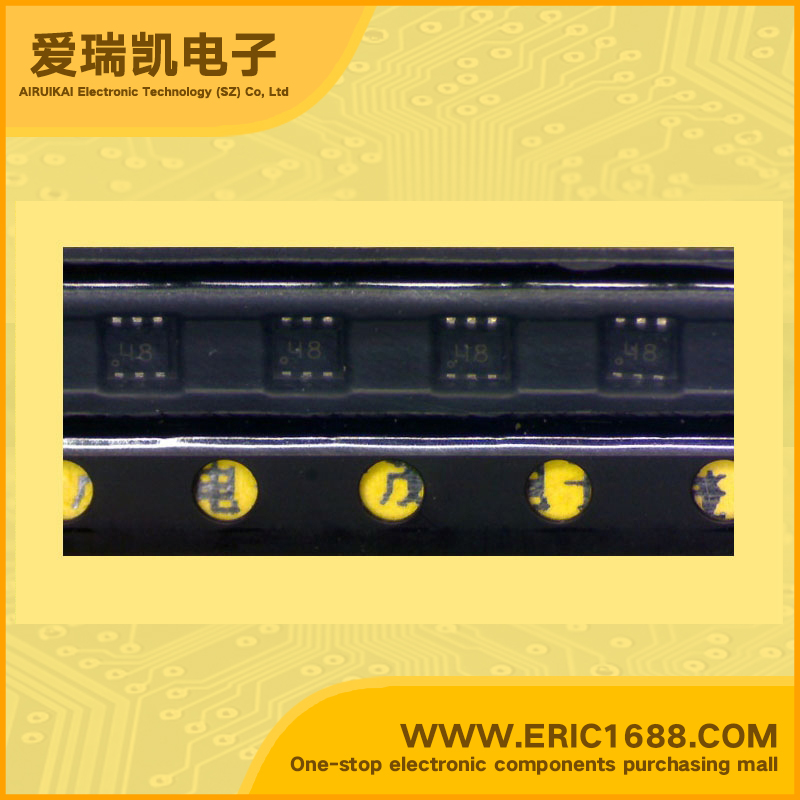

PEMD48 NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 100mA/-100mA 80/100 300mW/0.3W SOT-563/SOT666 marking 48 switching inverting interface driver circuit
| Collector-Base Voltage(VCBO) Q1/Q2 | 50V/-50V |
| Collector-Emitter Voltage(VCEO) Q1/Q2 | 50V/-50V |
| Collector Current(IC) Q1/Q2 | 100mA/-100mA |
| Q1 Input Resistance(R1) Q1/Q2 | 47KΩ/Ohm |
| Q1Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q1 Q1 Resistance Ratio | 1 |
| Q2 Input Resistance(R1) | 2.2KΩ/Ohm |
| Q2Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| Q2(R1/R2) Q2 Resistance Ratio | 0.047 |
| DC Current Gain(hFE) | 80/100 |
| Transtion Frequency(fT) Q1/Q2 | |
| Power Dissipation Q1/Q2 | 300mW/0.3W |
| Description & Applications | Features • PNP/PNP resistor-equipped transistors; • 300 mW total power dissipation • Very small 1.6 mm × 1.2 mm × 0.55 mm ultra thin package • Reduces number of components as replacement of two SC-75/SC-89 packaged transistors • Reduces required board space • Reduces pick and place costs • Self alignment during soldering due to straight leads APPLICATIONS • General purpose switching and amplification • Inverter and interface circuits • Circuit driver. |
| 描述与应用 | 特点 •PNP / PNP电阻配备晶体管; •300 mW的总功耗 •非常小1.6毫米×1.2毫米×0.55毫米的超薄封装 •减少作为两个SC-75/SC-89包装晶体管的更换的部件数量 •减少所需的电路板空间 •减少取放成本 •自对准直引线在焊接过程中，由于 应用 •通用开关和放大 •逆变器和接口电路 •电路驱动。 |
