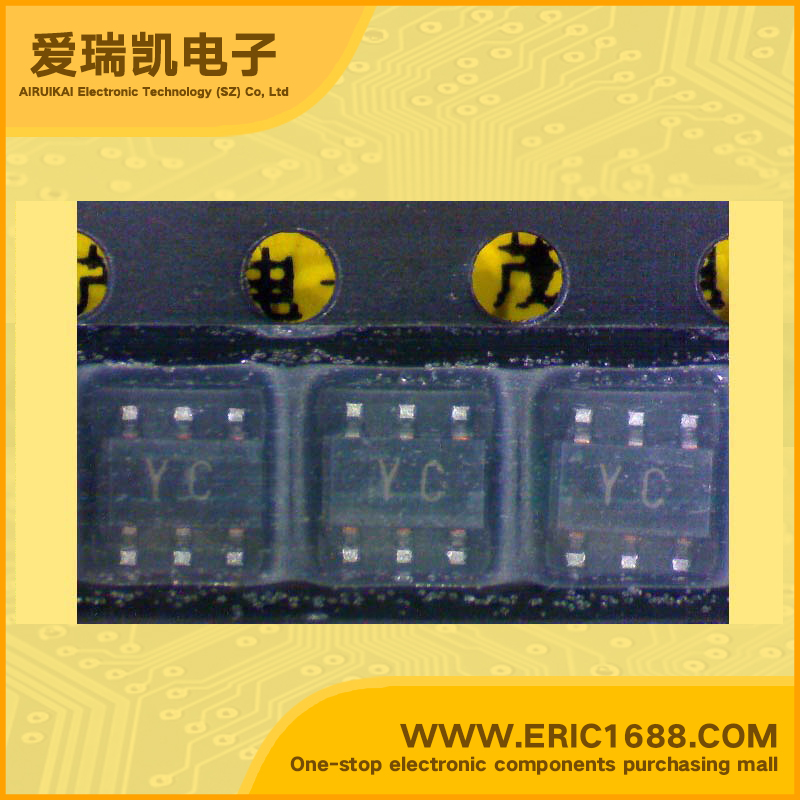

RN2603 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A 0.3W R1= R2=22KΩ SOT-163/SM6/SOT23-6 marking YC switching inverting interface driver circuit

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -0.1A
 Input Resistance(R1)  22KΩ
Base-Emitter Resistance(R2)  22KΩ
Base-Emitter Input Resistance Ratio (R1/R2)  1
DC Current Gain(hFE)  70
Transtion Frequency(fT)  200MHZ
Power Dissipation (Pd)  300MW/0.3W
Description & Applications  Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications

* Including two devices in SM6 (super mini type with 6 leads)
* With built-in bias resistors
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process
